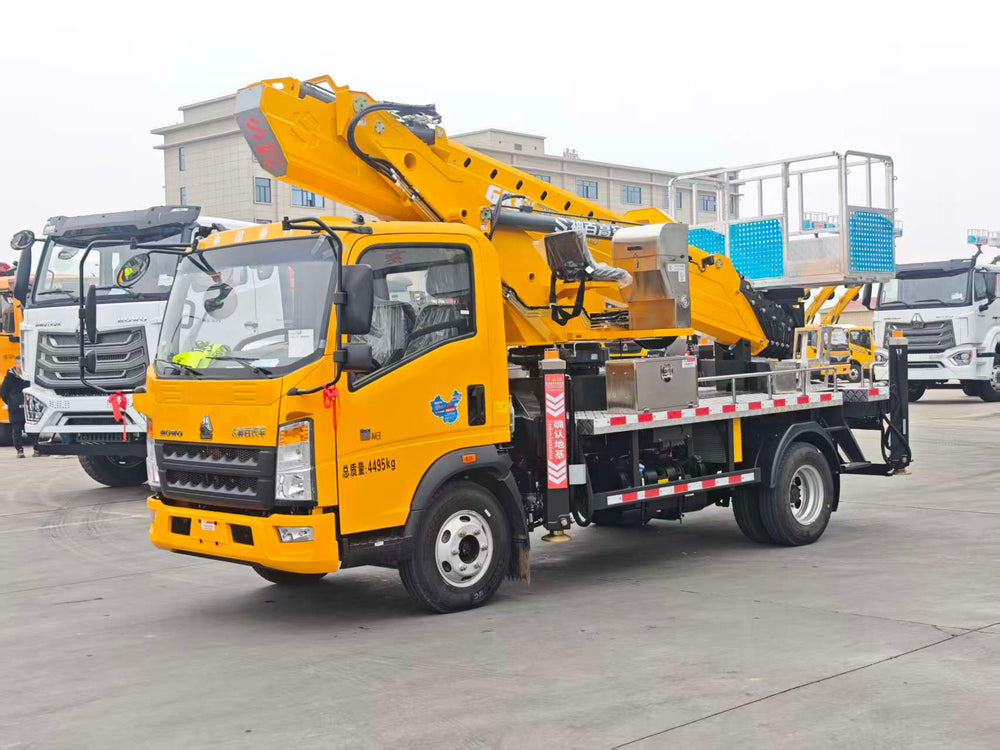

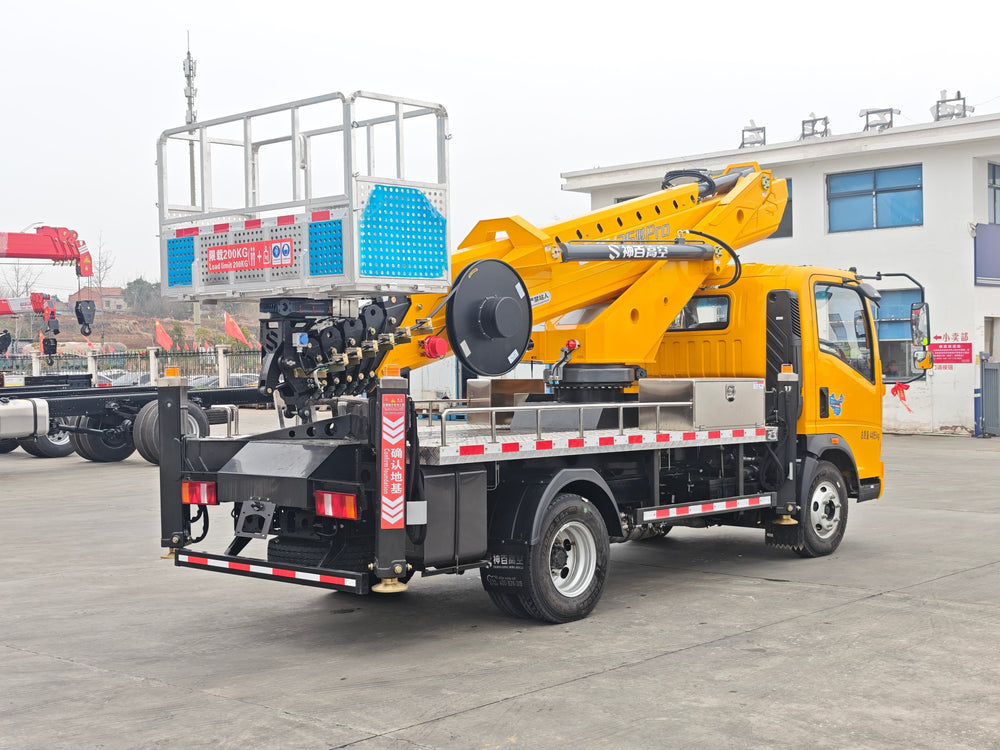

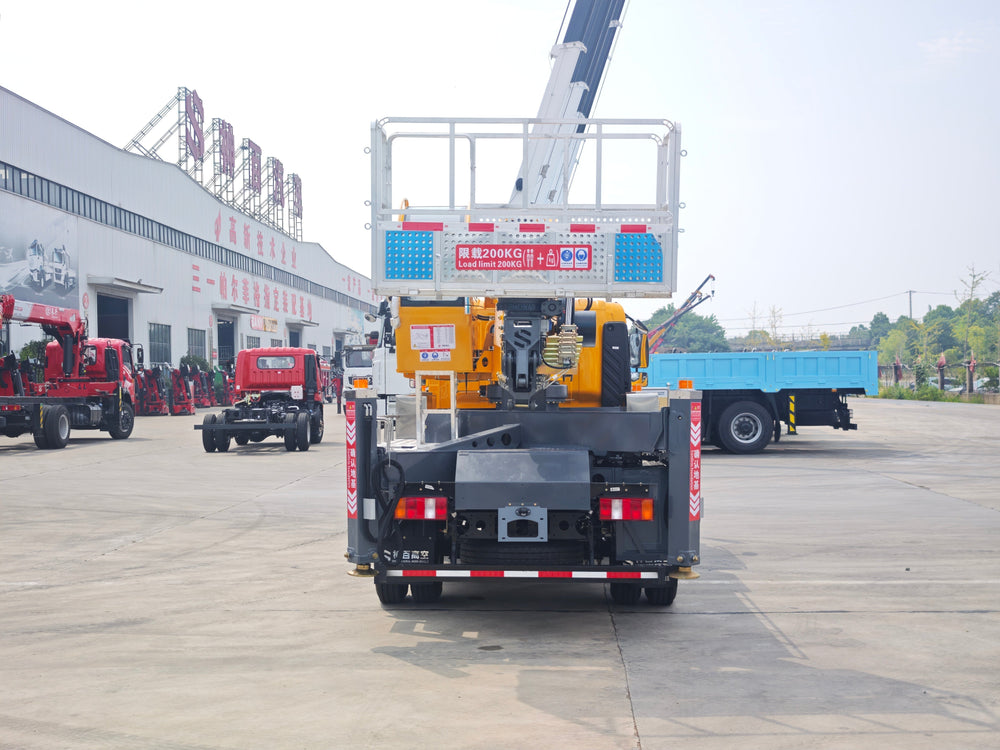

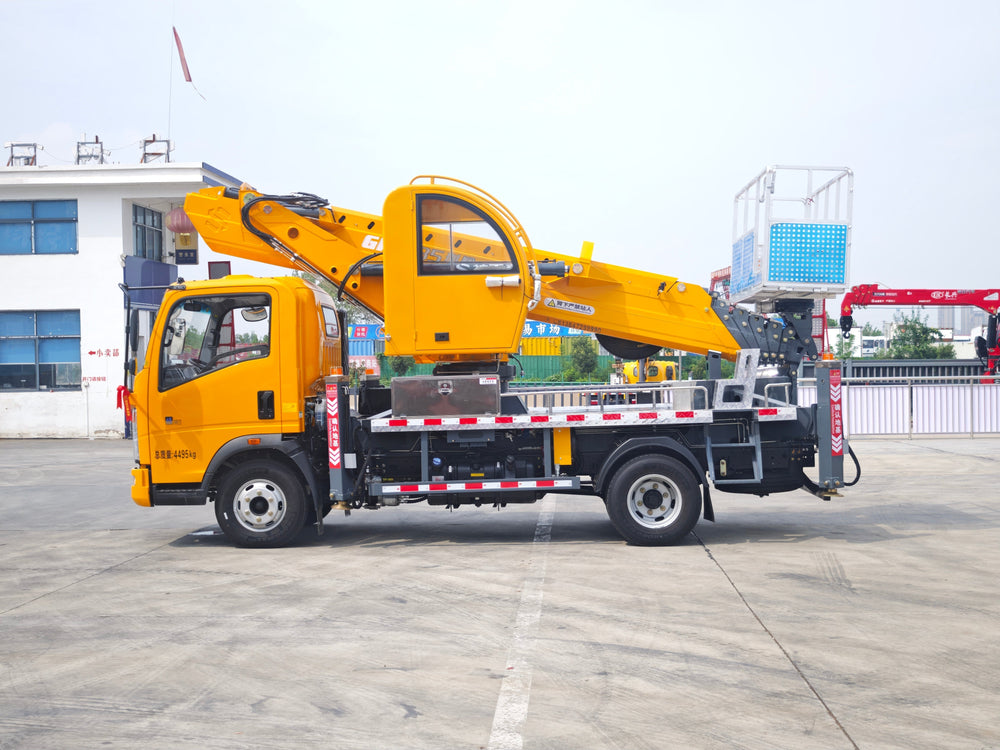

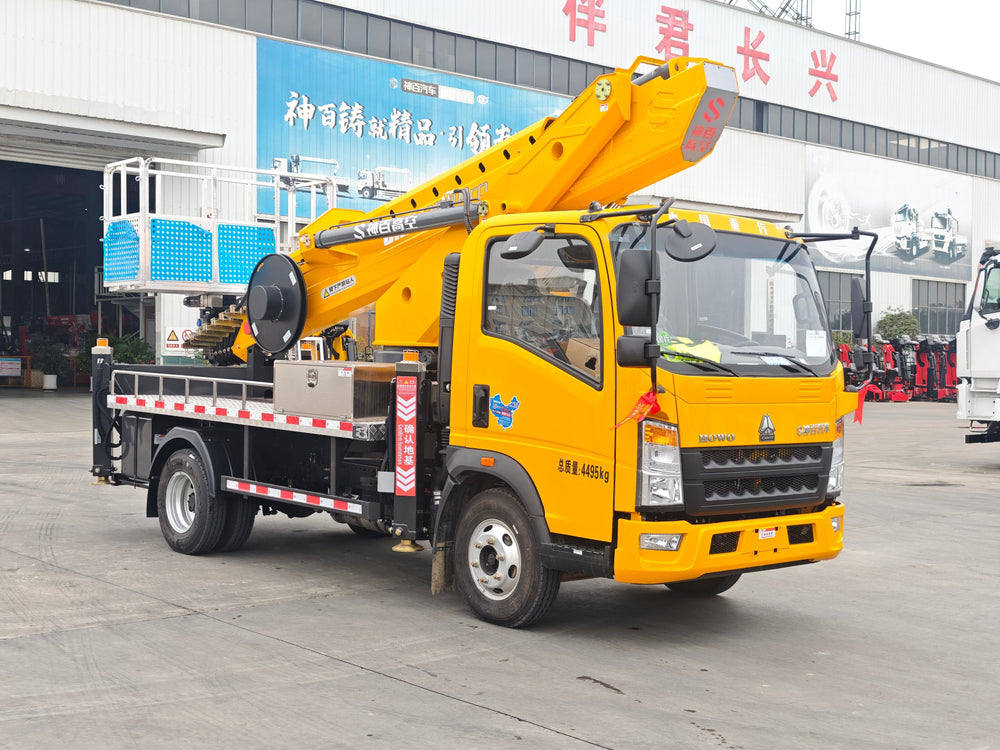

HOWO GKS35Pro Aerial Work Platform Truck

1 / 14

Request a Quote Now

Item	Description / Parameter
Product Model	GKS35 Pro Aerial Work Vehicle, Howo Rich Edition
Approval Model	ABC5047JGKZZ6
Brand & Warranty	Authentic CNHTC Howo luxury high-end brand, 2-year extended warranty
After-sales Support	2150 authorized service stations nationwide
Core Innovation	Nationally pioneered 7-section boom design, 33.8m working height for blue-plate certification
Boom Material	960 high-strength steel plate, lightweight & high rigidity

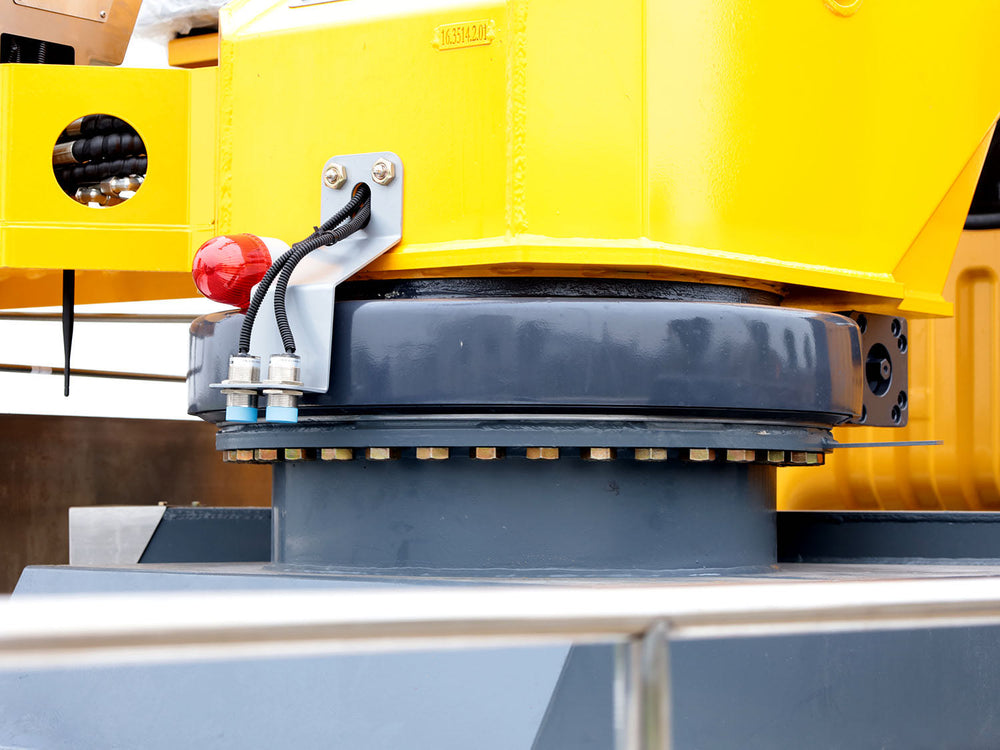

Key Structure	Dual lifting cylinder design; Box-type subframe + 3-layer trapezoidal reinforced slewing base

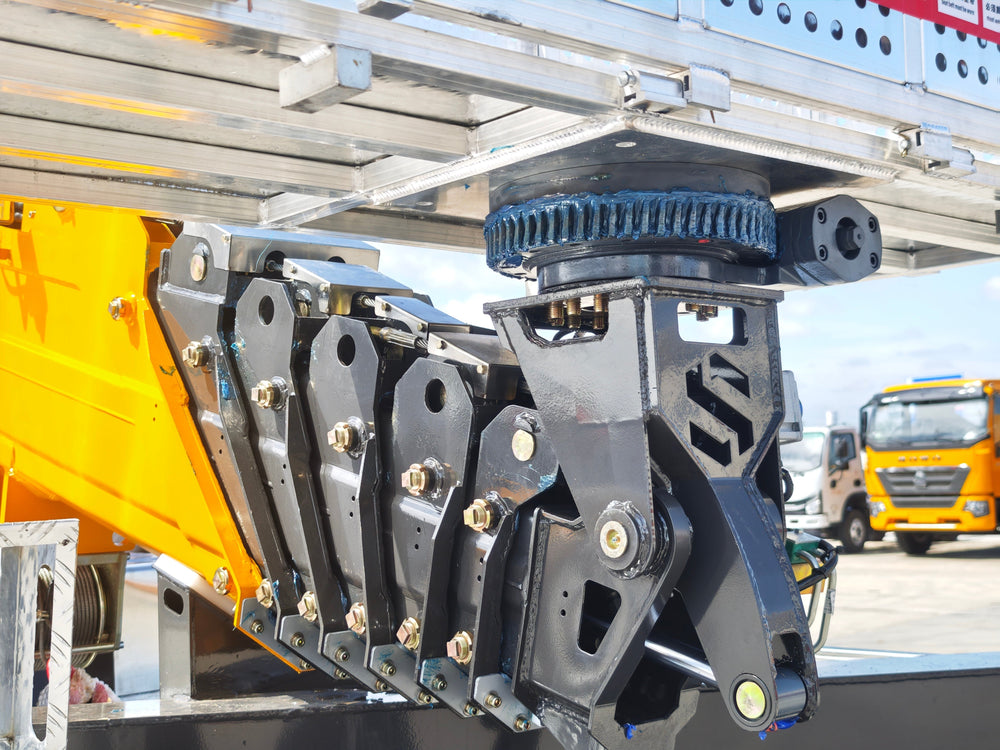

Working Platform	Full aluminum alloy basket with 9-inch slewing support, built-in cargo platform
Passability	Overall vehicle height: 3.15m, excellent urban operation passability

2. Chassis Configuration

Item	Parameter

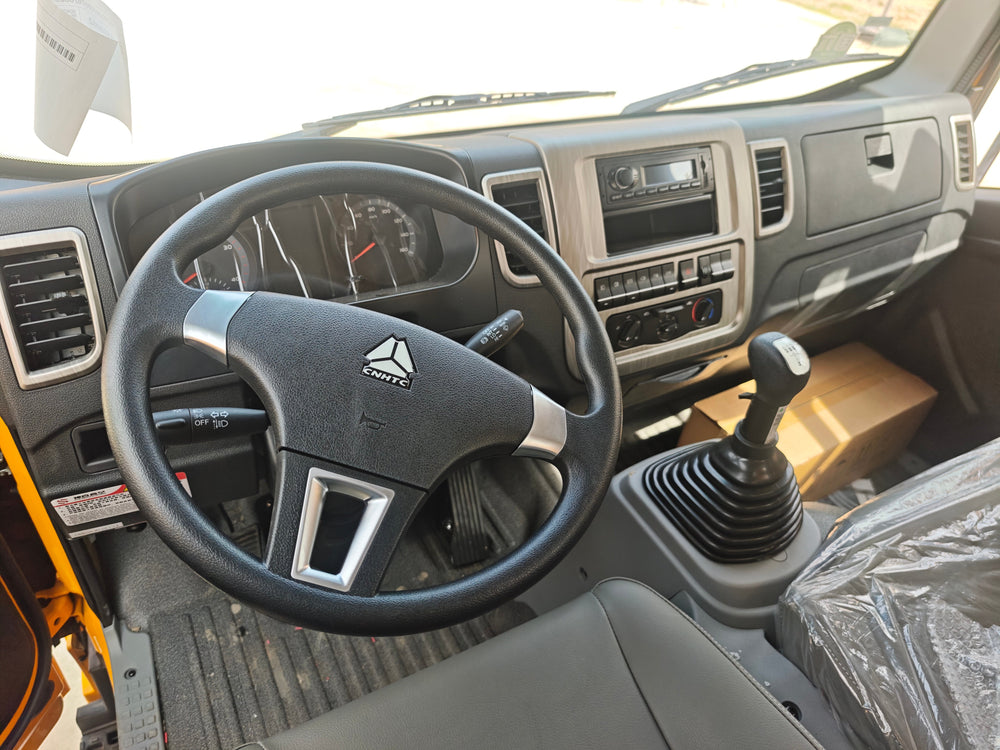

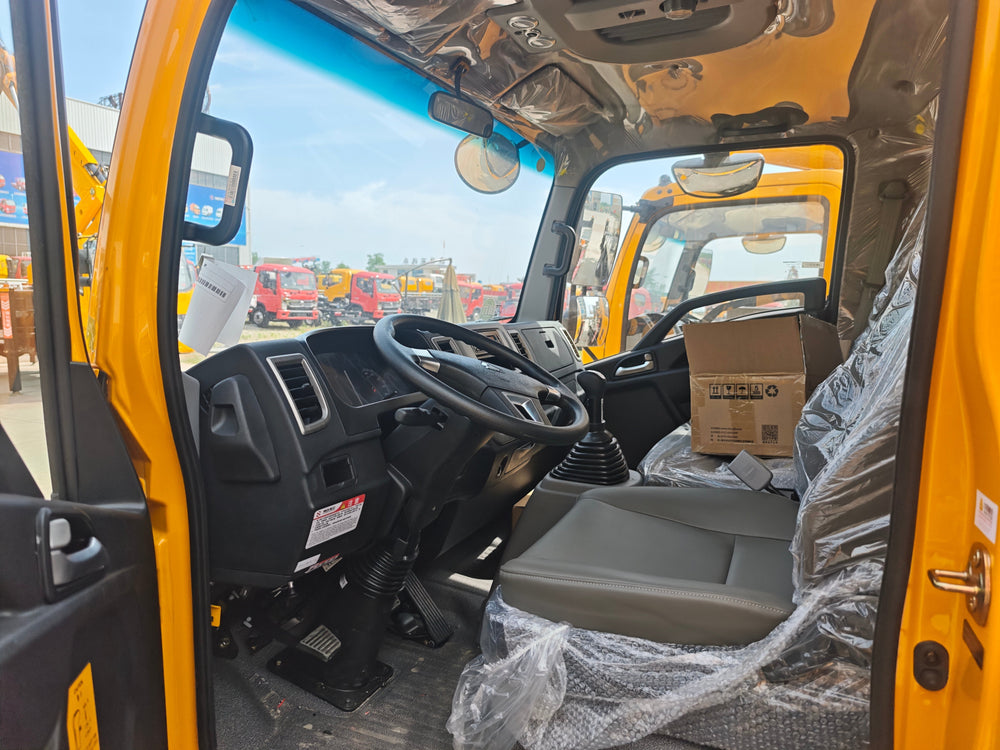

Cab	Howo Rich Edition Driver Cab
Gross Vehicle Weight	4495 kg
Curb Weight	4300 kg
Engine	Weichai WP25Q160E62, 160 HP Diesel Engine
Transmission	Wanliyang 6-speed / Small 8-speed Gearbox (oil change every 120,000km)
Wheelbase	3280 mm
Overall Dimension	5995×2200×3150 mm
Tire Spec	700R16
Brake System	Air Cut-off Brake
Standard Accessories	Power Window, Air Conditioner, Central Door Lock

3. Superstructure (GKS35 Pro) Technical Parameters

Item	Parameter
Max Working Height	33.8 m
Max Working Radius	16.5 m
Rated Platform Load	200 kg
Boom Slewing Range	360° Full Unlimited Rotation

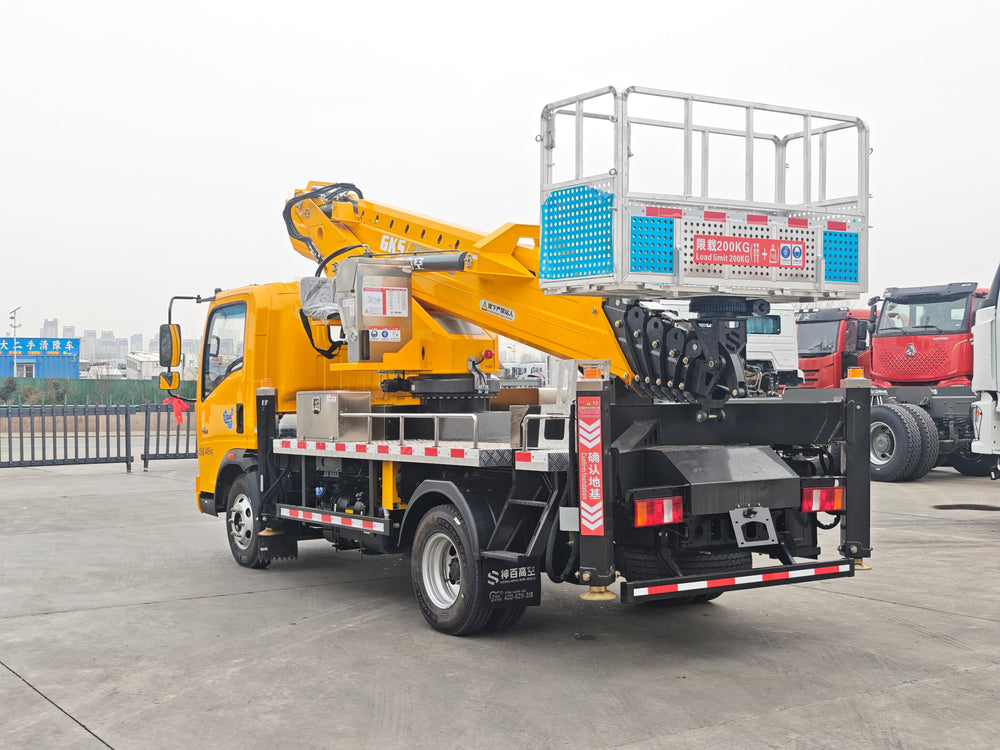

Platform Size	1800×700×1000 mm with flip plate & cargo platform
Platform Rotation	360° Unlimited Rotation
Boom Structure	7-section boom, 6-section synchronous extension; spare steel cable for emergency crew lowering
Total Boom Length	30.3 m

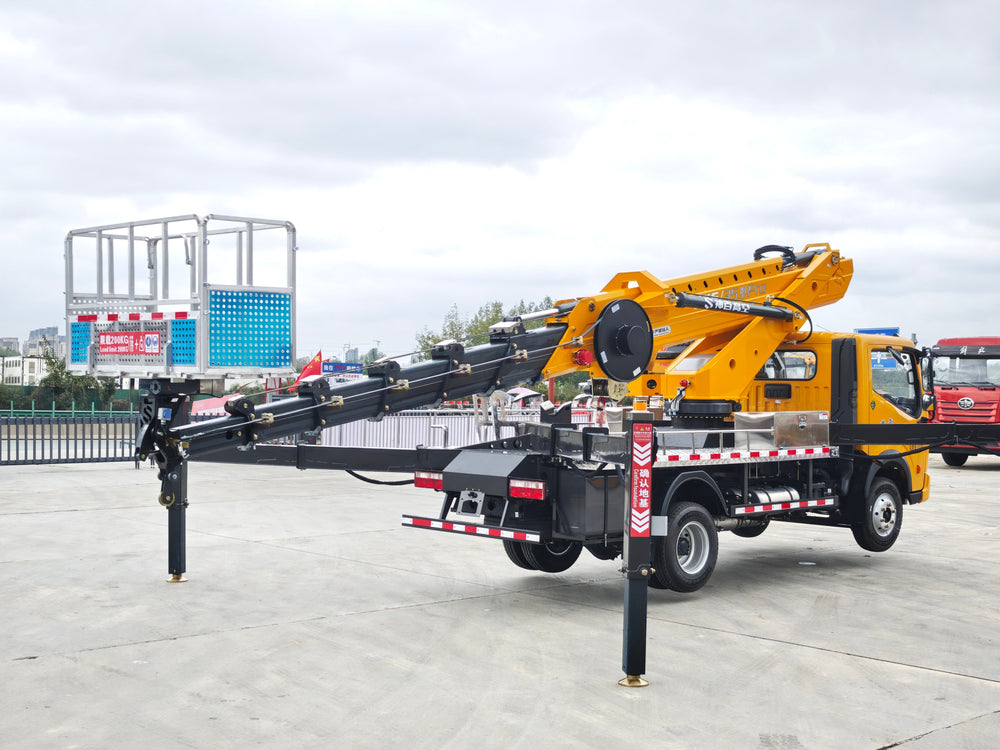

Outrigger	X-type, 4 independent double-stage legs; Transverse span:5800mm, Longitudinal span:6700mm

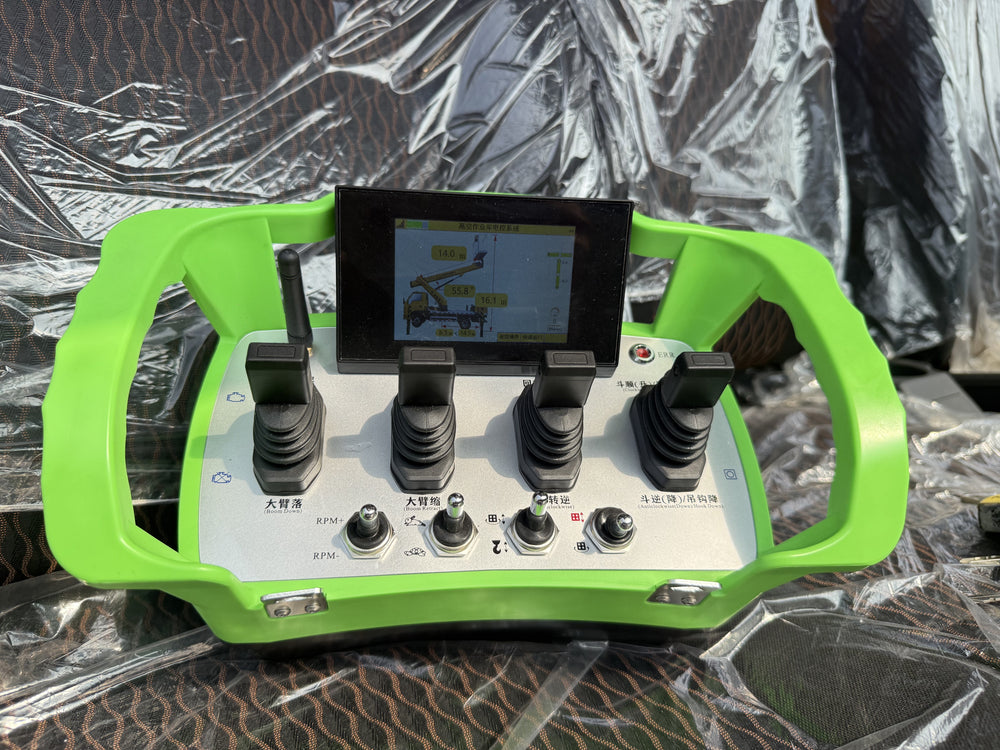

Control System	Domestic famous ECU, wireless remote control + central control with display screen

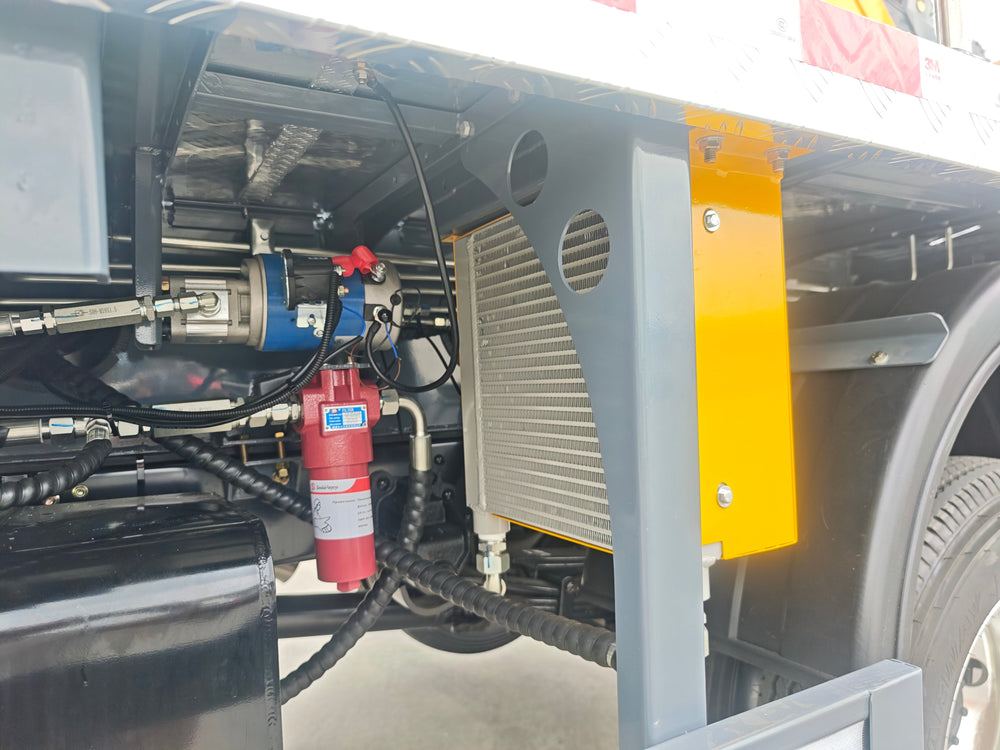

Hydraulic System	Electro-hydraulic proportional valve, stepless speed regulation + emergency power unit
Walkway	Anti-slip aluminum alloy walkboard
Safety Devices	Upper-lower cabin interlock, emergency power, bi-directional hydraulic balance valve, outrigger protection, radiator, 220V external power supply
Optional Parts	Upper operation cabin, 1T winch
