| Parameter | Value |
|---|---|
| Basic Vehicle Information | |
| Vehicle Model | ABC5047TQZBJ6 |
| Chassis Configuration | |
| Cab Model | Aoling Feiyang Edition Wide-body Cab |
| Engine | Yunnei 160HP Engine |
| Gearbox | Fast 8-speed Gearbox |
| Wheelbase | 3800mm Long Wheelbase |
| Frame | Original Factory 3-layer Girder |
| Tires | 750 Steel Wire Tires |

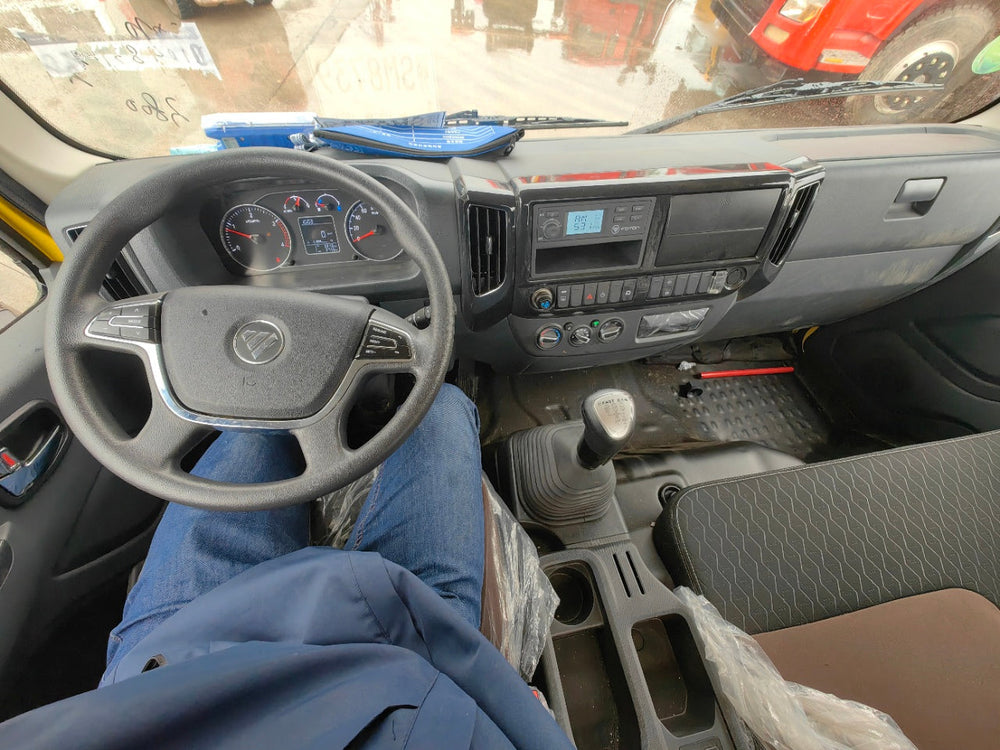

| Cab Standard Equipment | Sun Visor, Heated Rearview Mirrors, Multi-function Steering Wheel, Cruise Control, Original Factory Power Take-off (PTO) |
| Configuration Note | Specific configuration is subject to the actual delivered chassis |
| Upper Body Configuration | |
| Body Type | Inclined Integrated Upper Body, Standard Sunken Manufacturing Process |
| Flatbed Length | 5.6-5.8m (customizable on demand) |
| Flatbed Width | 2.3-2.55m (customizable on demand) |

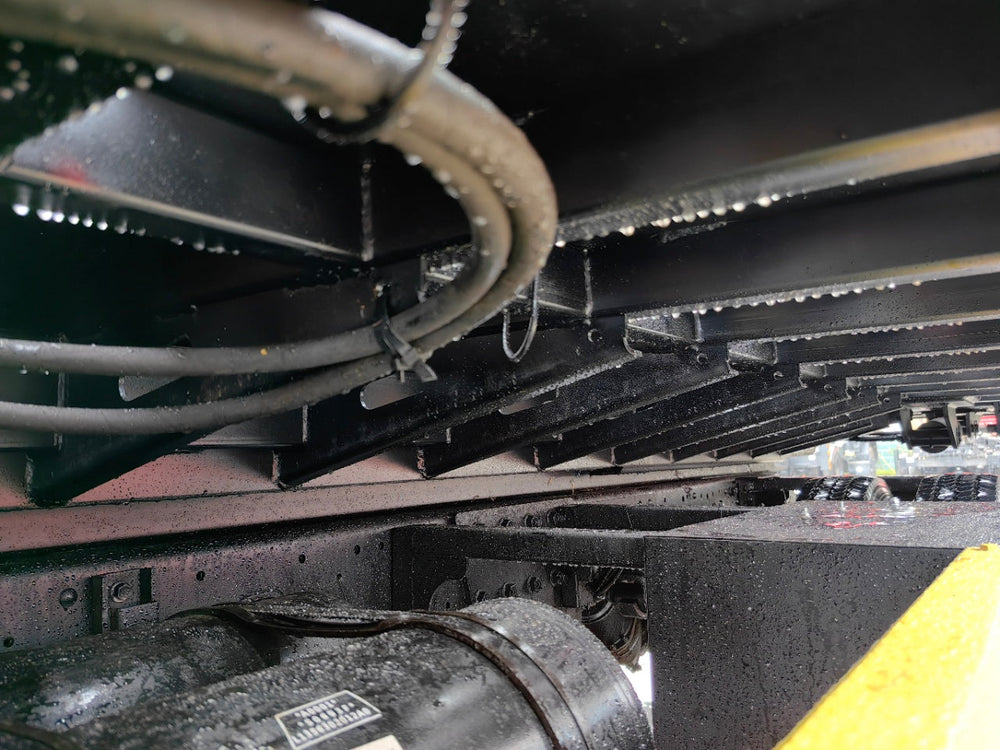

| Body Structure | Double Auxiliary Frame Assembly, Densified Grid Welding & Triangular Diagonal Bracing under the Flatbed |
| Hydraulic System | Model 110 Main Flatbed Telescopic Oil Cylinder, Model 95 Lifting Oil Cylinder, Domestic Brand Multi-way Hydraulic Valve |
| Slideway | 10mm Thick Manganese Steel Flatbed Chute |
| Frame Border | 14mm Thick Solid Steel Plate Frame with Cut Holes |

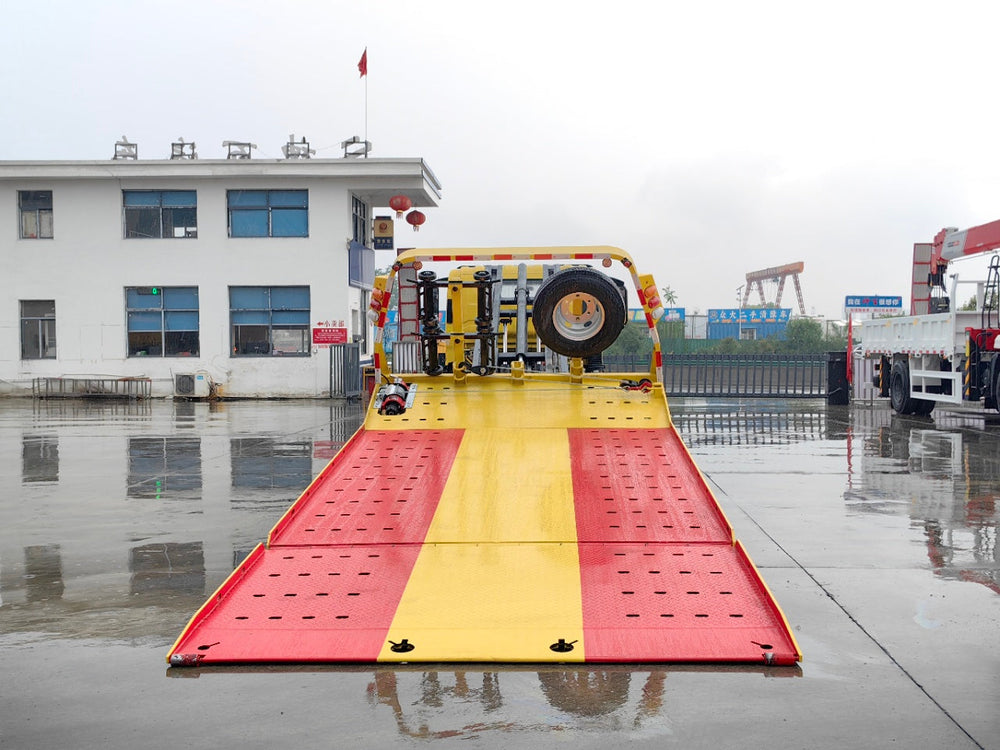

| Flatbed Floor | 5mm Thick Wear-resistant Checkered Plate |
| Rear Mechanism | Rear Hydraulic Turnover Hinge |
| Winch | Standard 4-ton Winch |
| Rear Tow Arm | 4-ton Rear Tow Arm (Mounted on the Main Girder) |
| On-board Accessories | |
| Triangle Wheel Chocks | 1 Pair |
| Auxiliary Trolleys | 1 Pair |
| Trolley Crowbar | 1 Piece |
| High-quality Binding Belts | 4 Pieces |
