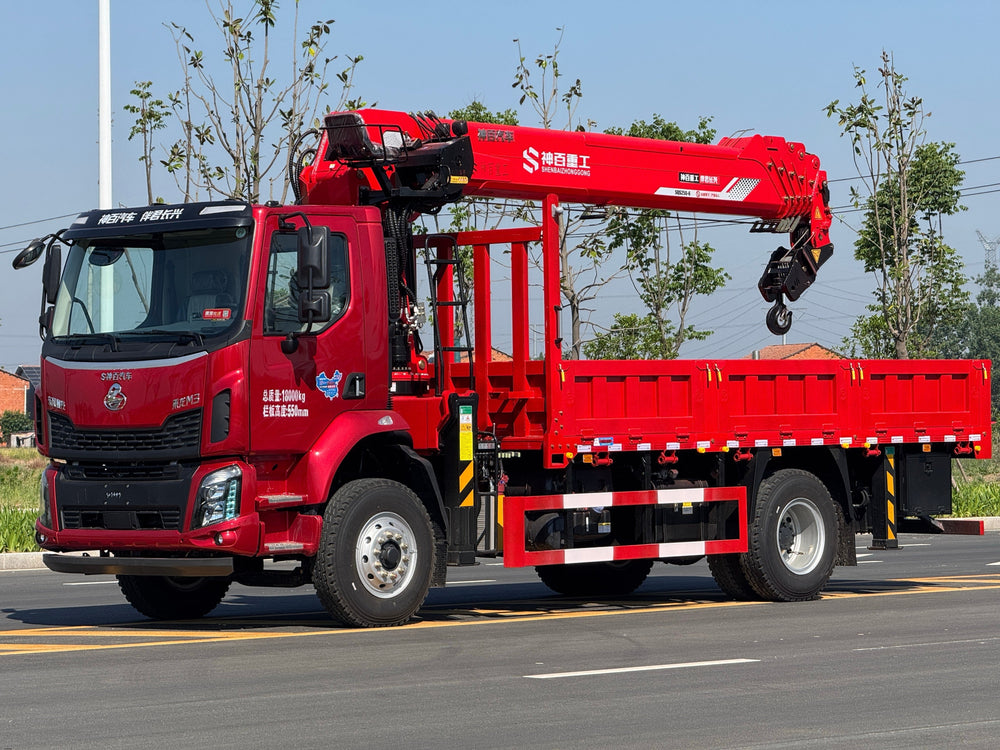

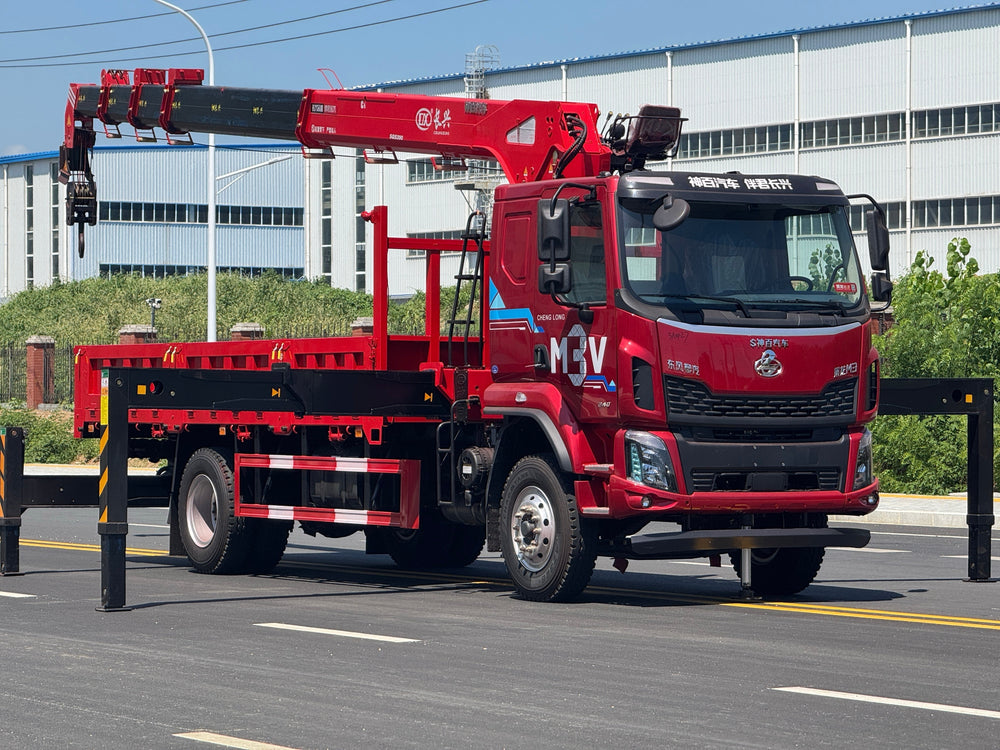

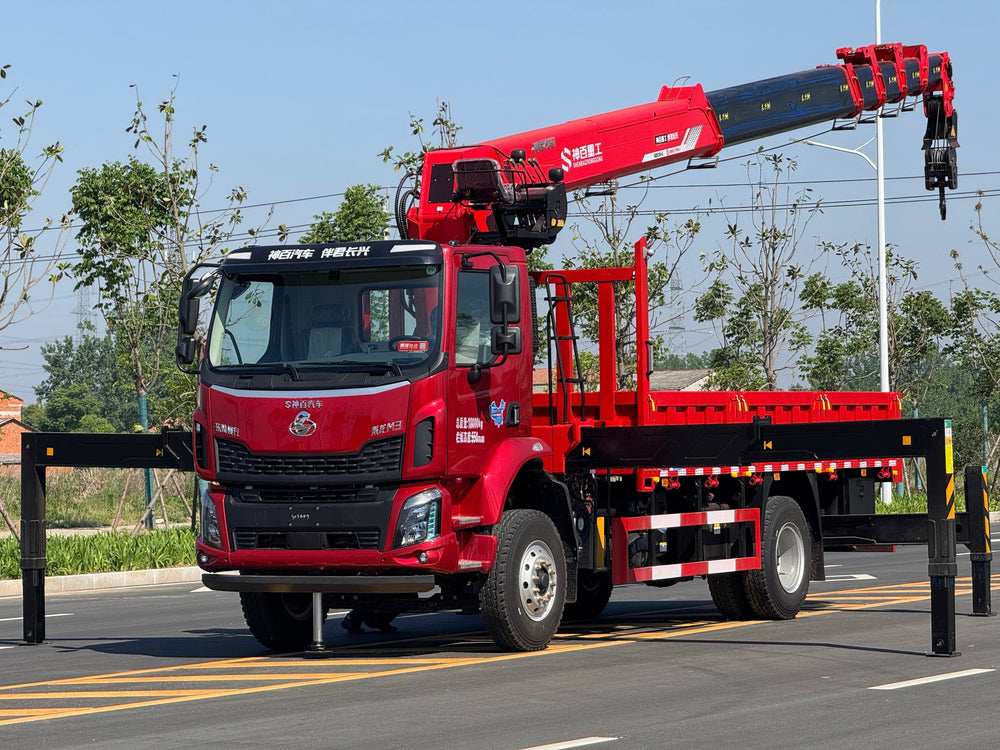

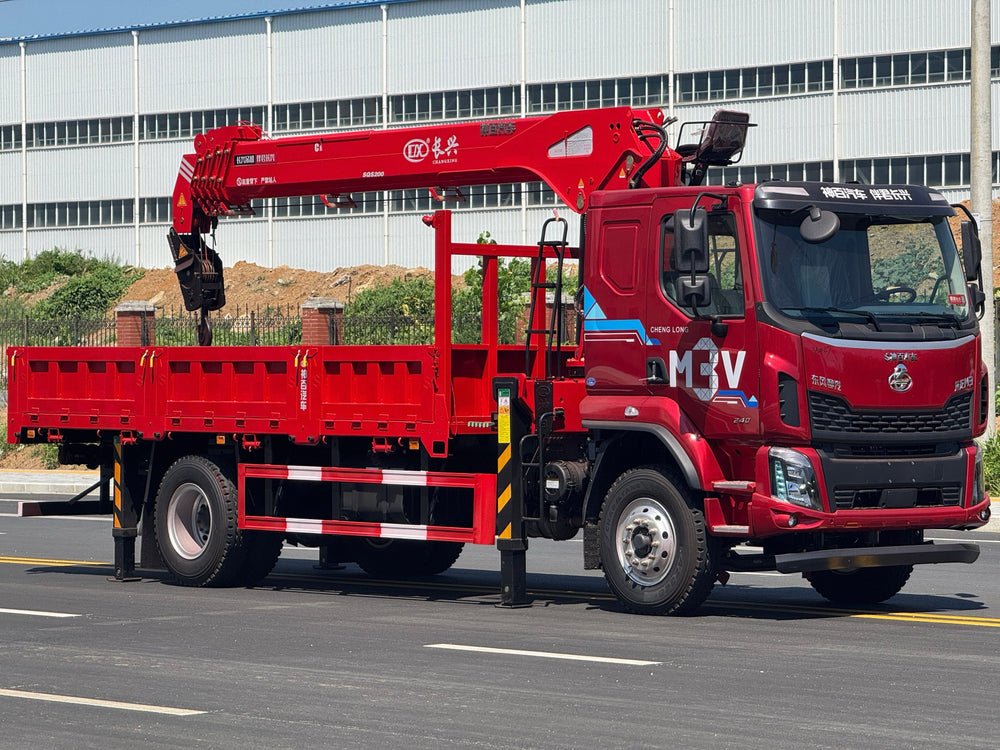

DongFeng 240HP Telescopic Boom Crane

1 / 8

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Value
Chassis Model	LZ1186M3ACT
Gross Vehicle Weight (GVW)	18000KG
Curb Weight	14000KG/13500KG/12900KG/12000KG/11500KG/11000KG
Announcement Coverage	8-12 ton announcement covers all domestic crane photos, no worries for vehicle registration
Wheelbase Options	5100mm, 4500mm
Cab Type	M3 cab, single-row cab, half-row cab

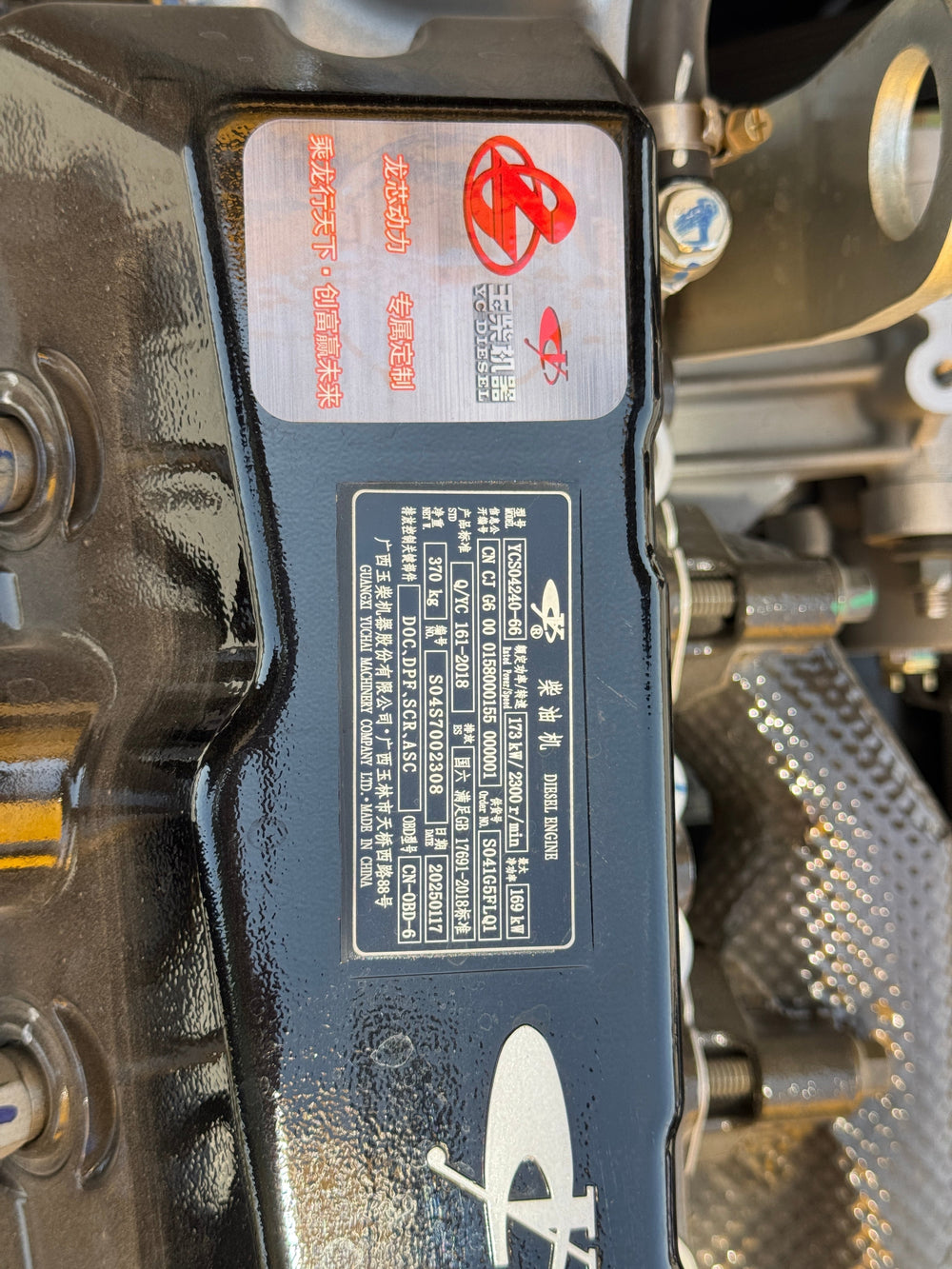

Engine Model	YCS04240-66
Transmission Model	8JS85E-C (with spline power take-off)
Front Axle	5.5T narrow front axle
Rear Axle	153 rear axle
Axle Ratio	5.571
Fuel Tank	200L iron fuel tank
Tire Specification	10.00R20 18PR
Clutch	Φ395 push-type clutch
Leaf Spring	11/12+9 leaf spring
Frame	282(8+4) local three-layer frame (with small connecting plate)
5100mm Wheelbase - Overall Vehicle Length	9000mm
5100mm Wheelbase - Single-row Cab Cargo Box Size	6100mm
5100mm Wheelbase - Half-row Cab Cargo Box Size	5600mm
4500mm Wheelbase - Overall Vehicle Length	8320mm
4500mm Wheelbase - Single-row Cab Cargo Box Size	5400mm
4500mm Wheelbase - Half-row Cab Cargo Box Size	5000mm
Cab Suspension	Semi-floating cab suspension, manual hydraulic tilting
Driver's Seat	Knitted airbag driver's seat
Steering Wheel	Ordinary leather steering wheel
Window Lifter	Electric window lifter
Door Lock	Remote control central lock
Air Conditioning	Air conditioner
On-board Terminal	On-board terminal (driving recorder + compatible with Beidou GPS)
Telematics System	Chenglong V+ Internet of Vehicles 3.0 system
Switch	Multi-state switch
Safety Feature	Right turn reminder function
Valve	Domestic valve
Braking System	ABS, self-adjusting arm
Battery	Maintenance-free battery
Start/Stop Function	Under-vehicle start and stop function
Exterior Parts	Same color bumper + fender
Throttle	Rocker type self-return remote throttle
Sun Visor	Sun visor
