| Item No. | Product Advantage Description |
|---|---|
| 1 | Plateau Edition, 9L displacement Cummins 360HP engine + 16-ton wheel reduction axle, powerful power, ideal model for high-altitude operation; max torque 1500N·m, quick start & strong climbing performance |
| 2 | Standard HAN V2.0 flat-roof full-floating cab: air conditioner, electric cab tilting, electric windows, video recorder, air spring seat, engine coolant preheating device |
| 3 | Core configuration customized for heavy-load working conditions, long-distance transportation and high-end special vehicle market |
| 4 | Four-point air suspension for shock absorption & anti-vibration, more stable operation; matched with hydraulic shock absorbers to greatly improve driving & operation safety factor; noise reduction creates quiet cab environment to relieve fatigue during long-time driving |
| 5 | High-pressure fuel system + modular aftertreatment for more sufficient combustion, lower fuel consumption & maintenance cost; reinforced cylinder block & crankshaft design for high attendance rate, compression resistance & durability, suitable for long-term heavy-duty intensive operation |
| 6 | 12-speed gearbox covering full working conditions, fuel-efficient at high speed & powerful at low speed with high transmission efficiency; all-metal gearbox housing for impact resistance & heavy-load resistance, fits frequent start-stop & heavy-load operation of truck-mounted crane, low maintenance cost |
| Parameter | Value |
|---|---|

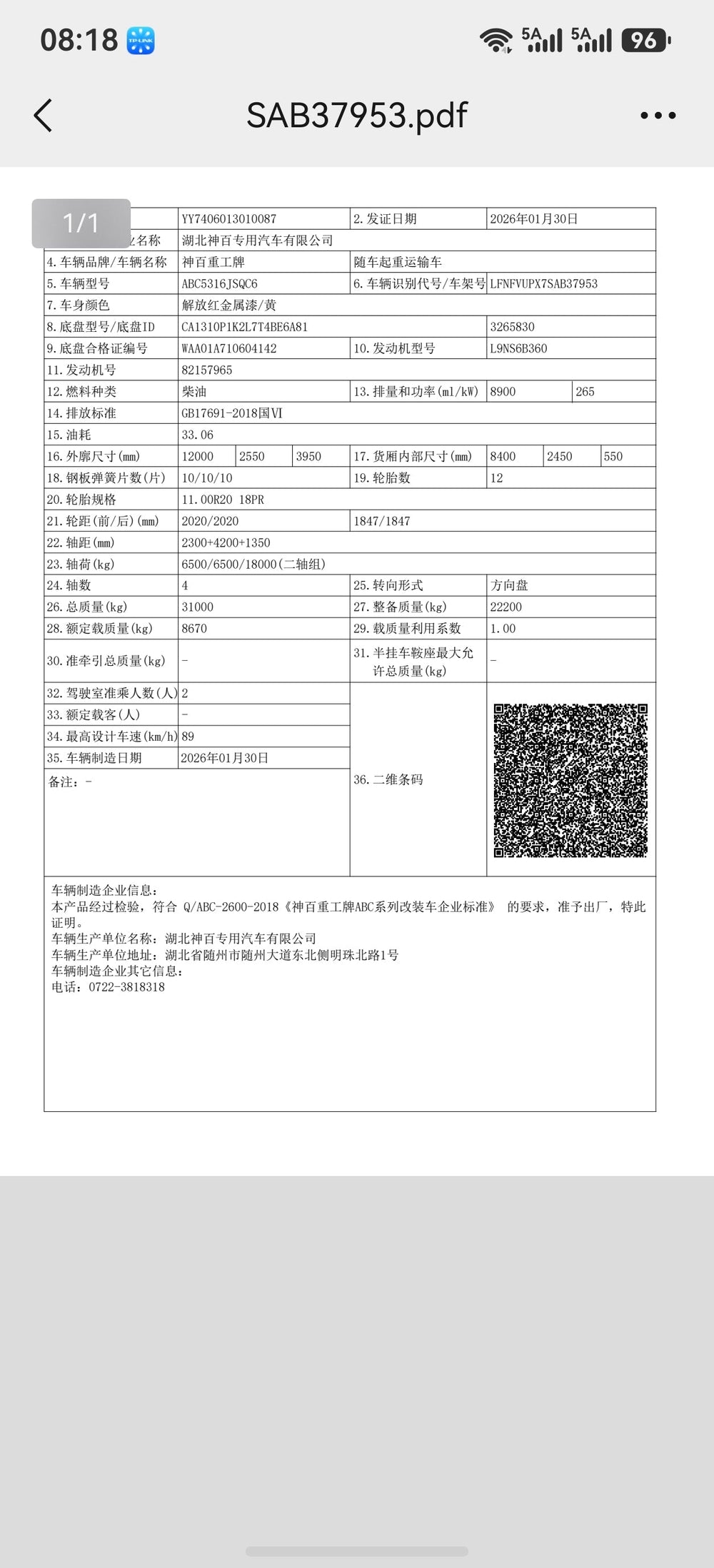

| Official Announcement Model | ABC5316JSQC6 |
| Chassis Model | CA1310P1K2L7T4BE6A81 |
| Engine Model & Power | Cummins 360HP, 9-liter displacement |

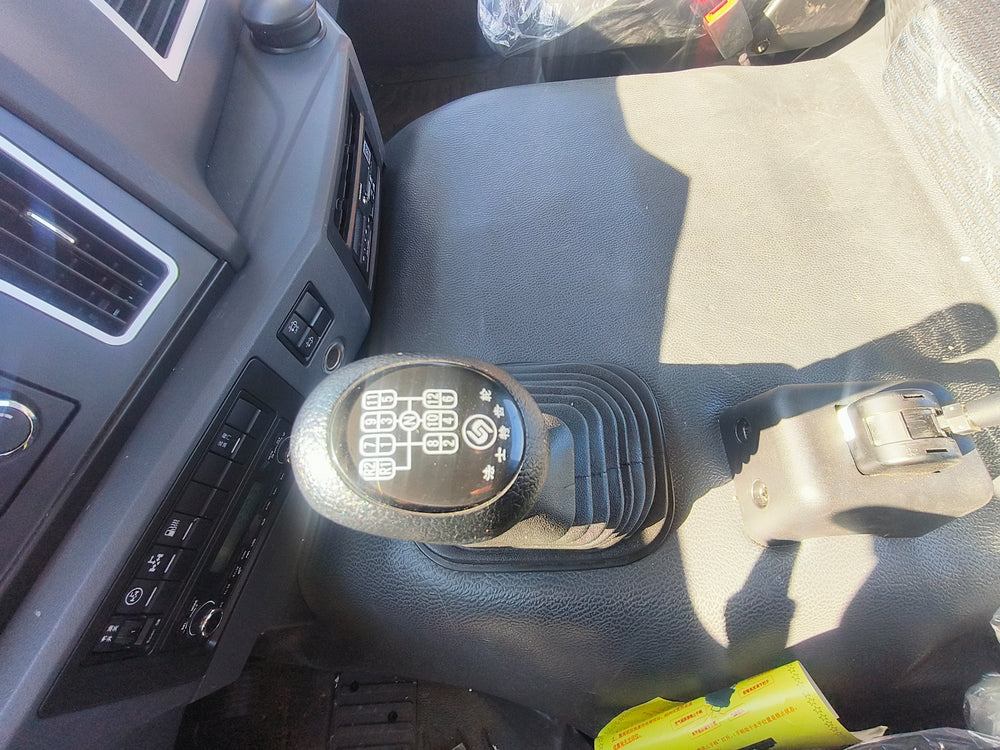

| Transmission | Shaanxi Fast 12-speed gearbox |
| Rear Axle Configuration | 13T / 16T wheel reduction axle with 3 differential locks, final drive ratio 4.805, drum brake |
| Tire Specification | 11.00R20, 18PR |
| Wheelbase Combination | 2300+4200+1350 mm |
| Main Frame Dimension | 300×80mm (8+5+8 layered structure) |
| Final Drive Ratio | 4.805 |
| Overall External Dimension Options | 12000×2550×3700mm, 3780mm, 3880mm, 3980mm |
| Cargo Box Dimension Options | 8500/8400/8300/8200/8100/8000/7900/7800/7700/7600/7500 × 2450 × 550/600 mm |
| Optional Curb Weight | 21700KG, 20700KG, 19800KG |
| Gross Vehicle Weight | 31000KG |
| Parameter | Value |
|---|---|

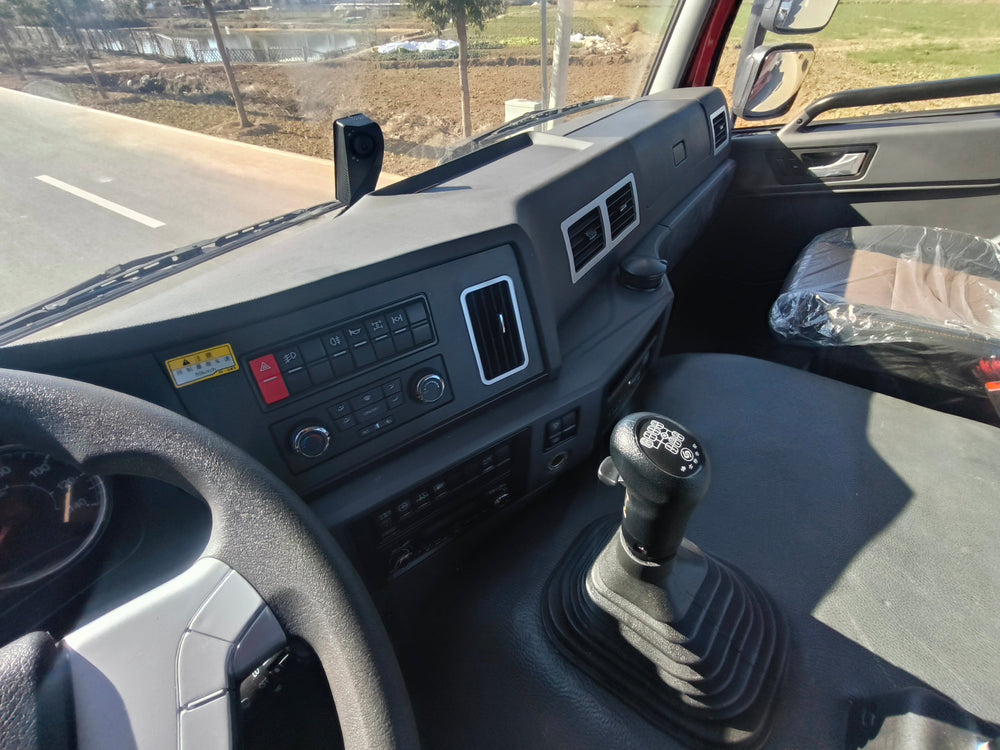

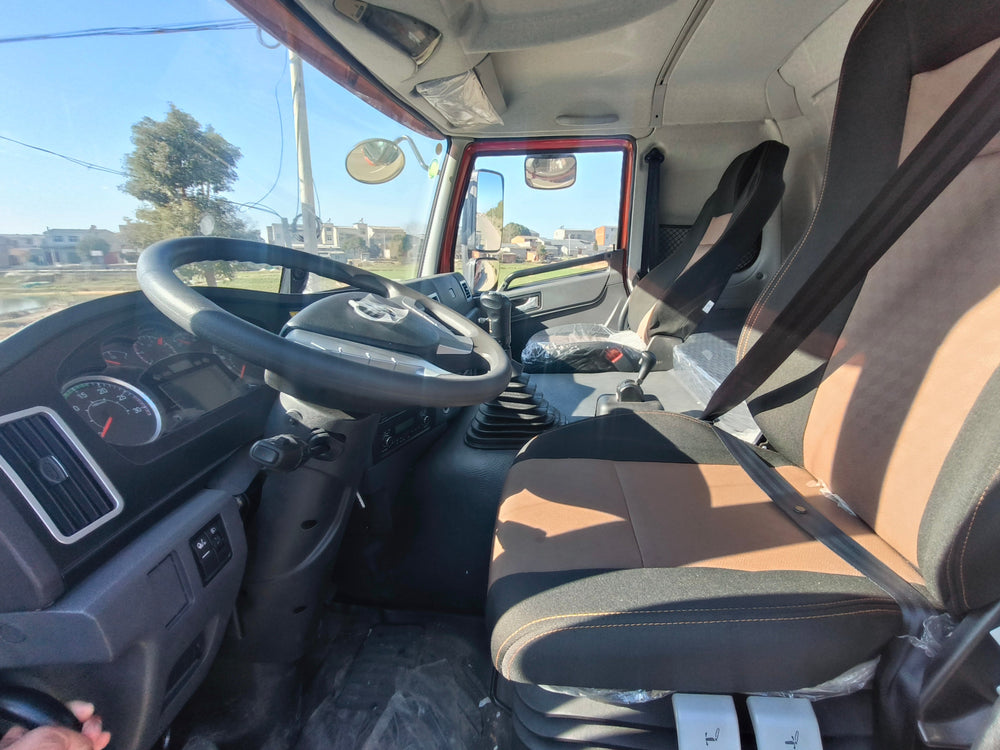

| Cab Type | HAN V2.0 flat-roof full-floating cab with four-point air suspension |
| Standard Cab Accessories | Air conditioner, electric tilting system, electric windows, video recorder, air spring seat, 220V power socket, central locking, hand throttle, PTO control switch, small front bumper |
| Clutch & Steering Parts | WABCO clutch booster, steering emergency assist function |
| Suspension | 10/10/10 leaf spring |
| Fuel Tank | 400L steel fuel tank |
| Exhaust Aftertreatment | U-type aftertreatment device |
| Cooling System | Electronically controlled silicone oil fan clutch, engine coolant preheating device |
| Electrical System | 150Ah storage battery, full-power power take-off & control mechanism, auxiliary start & flameout function |
| Maintenance Interval | Engine, gearbox & axle oil change cycle: 30000 / 60000 / 60000 km |
| Speed Limit | Max speed limited to 89 KM/H |
| Brake System | Equipped with ABS |
| Vehicle Application | Special chassis dedicated for truck-mounted crane |
| Crane Serial No. | Crane Model & Technical Parameters |
|---|---|
| 1 | Changxing 12 Ton, 4-section boom F-series crane
|
| 2 | Changxing 12 Ton, 5-section synchronous telescopic C-series crane
|
| 3 | Changxing 12 Ton, 5-section synchronous telescopic C-series crane
|
| 4 | Sany 12 Ton, 4-section boom crane
|
| 5 | Sany 12 Ton, 5-section boom crane
|
| 6 | Sany 14 Ton, 5-section boom crane
|
| 7 | Sany 16 Ton, 5-section boom crane
|
| 8 | TaiZhong 14 Ton, 5-section boom crane
|
| 9 | TaiZhong 16 Ton, 5-section boom crane
|
