| Parameter | Value |
|---|---|
| Basic Vehicle Information | |
| Vehicle Model | ABC5183TQZ EQ6 |
| Chassis Configuration | |

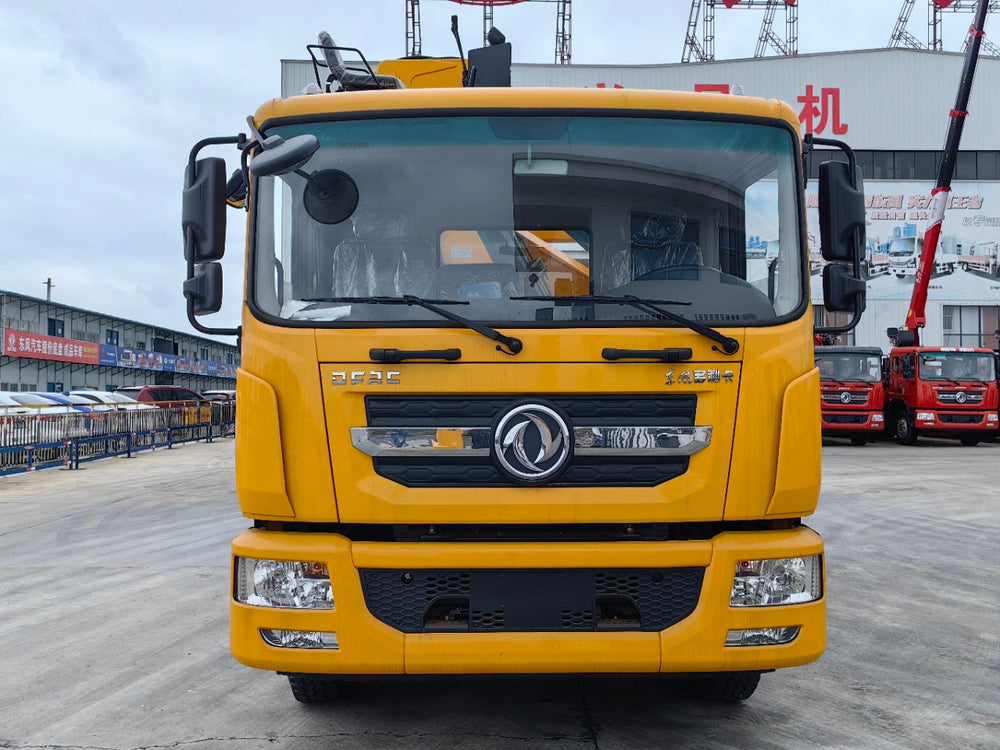

| Cab Model | Dongfeng D9 Row-and-a-half Cab with Sleeper |
| Engine Option | Cummins 230HP Engine / Yuchai 200HP Engine |
| Gearbox | Fast 8-speed Gearbox with High/Low Range |
| Wheelbase Option | 5300mm / 5600mm |
| Rear Axle | Dongfeng Dana 10-ton Rear Axle |
| Frame | Original Factory 3-layer Girder (Special Chassis for Wrecker Truck) |
| Tires | 1000 Steel Wire Tires with Spare Tire |
| Emission & License Compliance | Meets Beijing Emission Standard, Eligible for Beijing License Plate |
| Upper Body Configuration | |

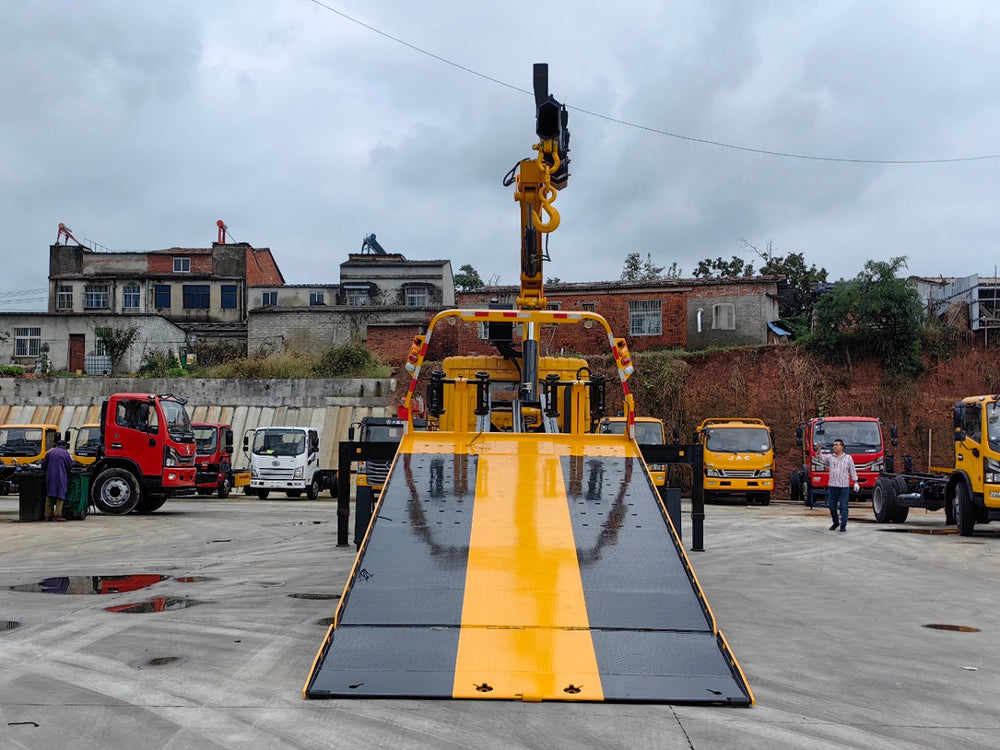

| Flatbed Overall Length | 6.8-7.2m |
| Rear Hydraulic Turnover Length | 1.2m |
| Flatbed Material | 6mm Thick High-strength Wear-resistant Checkered Plate |

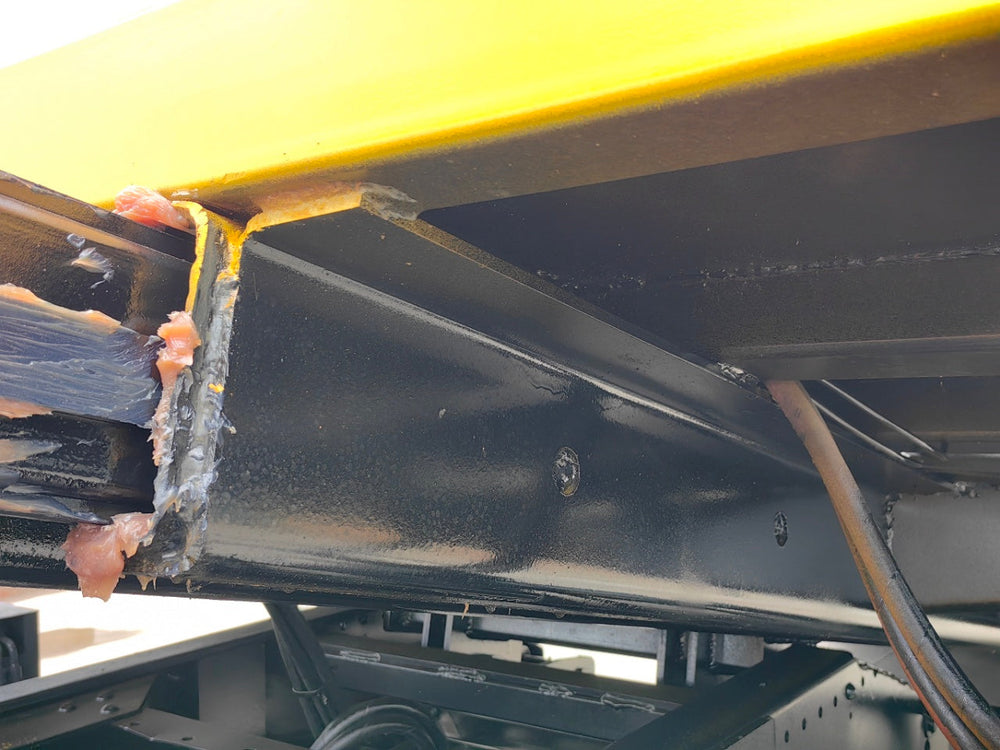

| Body Structure | Double Auxiliary Beam Design, Sunken Plate Process |
| Slideway | Double-layer Thickened Manganese Steel Chute |
| Frame Border | 16mm Thick Solid Steel Plate Frame with Cut Holes |
| Hydraulic Valve | Italy Imported Haide Hydraulic Valve |
| Winch | 8-ton Winch |

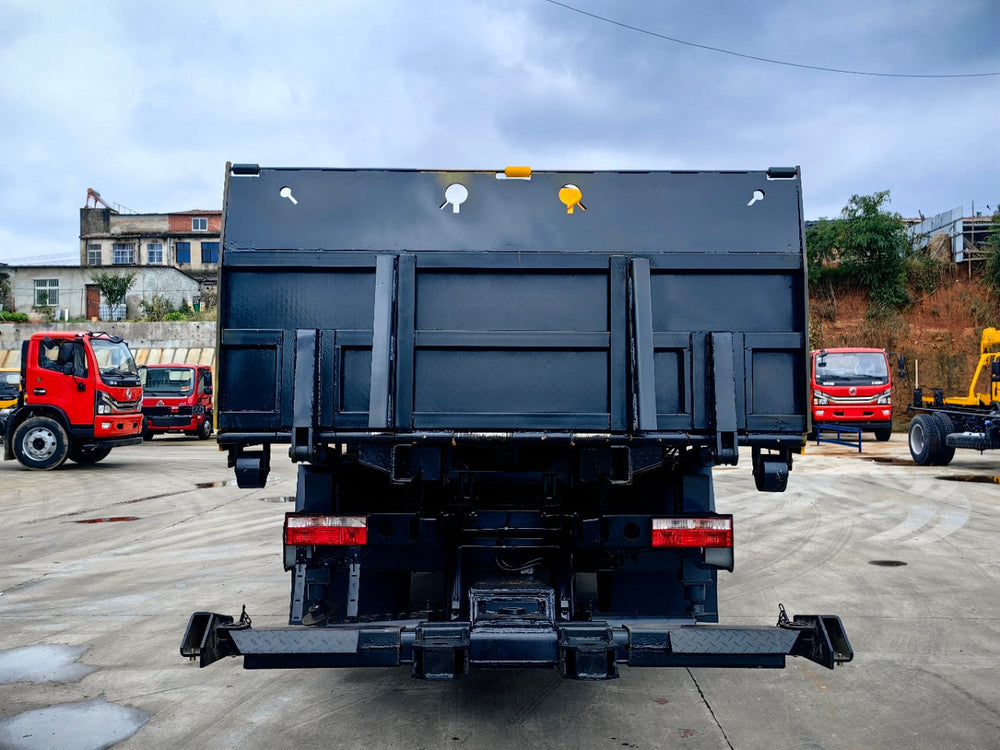

| Rear Tow Arm | 8-ton Rear Tow Arm (Mounted on Main Girder) |
| On-board Accessories | |
| Lighting Accessories | 2 Rear Working Lights, 1 Pair of Side Lights |
| Auxiliary Tools | 1 Pair of Auxiliary Trolleys |
| Fixing Accessories | 6 High-quality Binding Belts, 1 Pair of Triangle Wheel Chocks |
| Tow Accessories | 1 Pair of Tow Fork Bases, 3 Pairs of Tow Forks (1 Pair each for High/Medium/Low) |
| Optional Crane Configuration | |

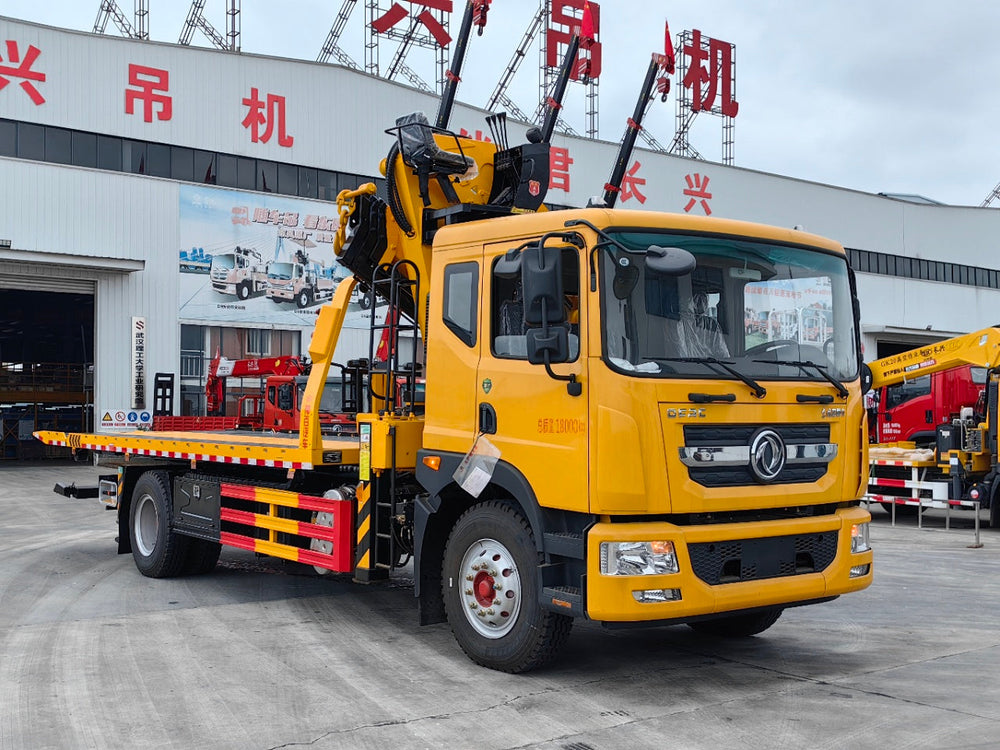

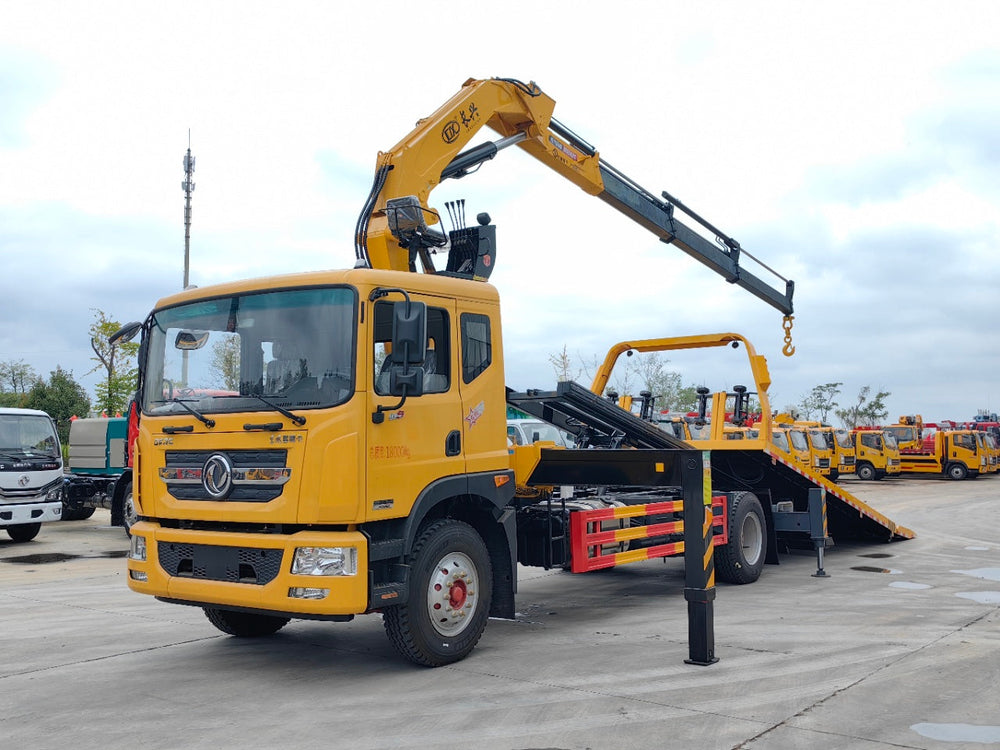

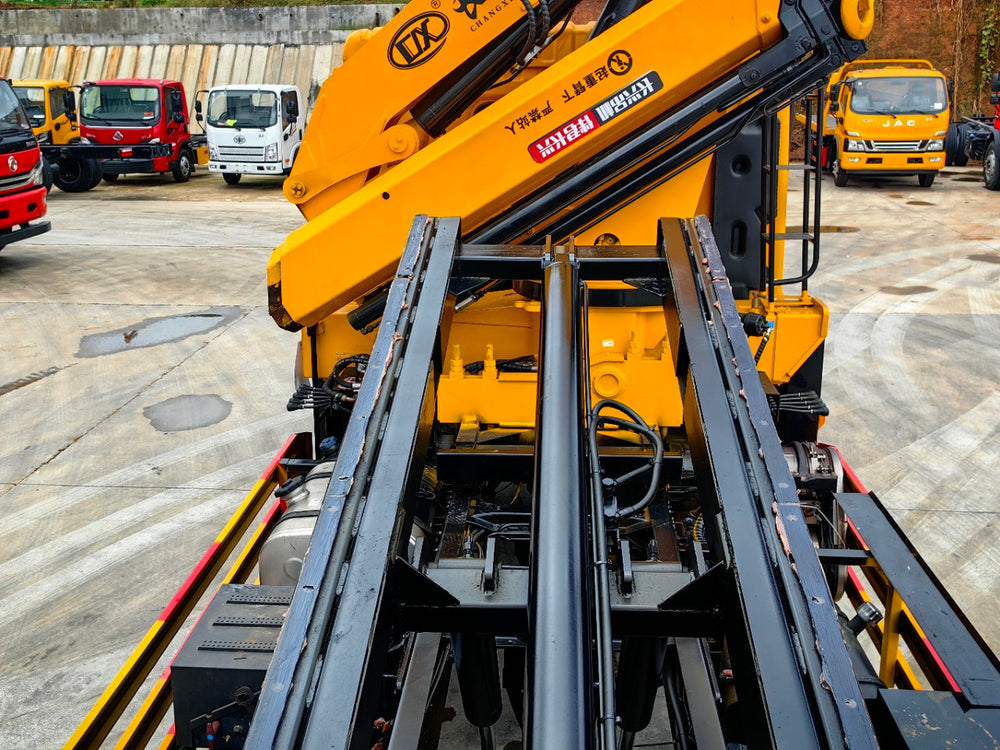

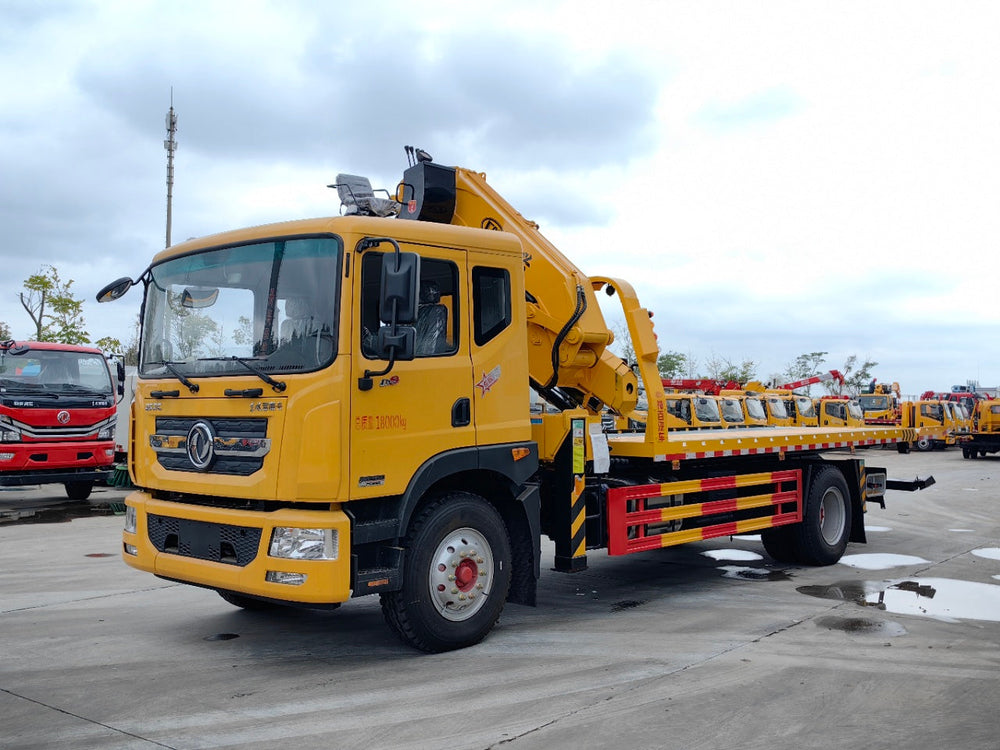

| Optional Crane Model | Changxing 8-ton 4-section Arm Crane / 5-section Arm Straight Boom Crane / 8-ton 4-section Arm Folding Boom Crane |
