| Parameter | Value |
|---|---|
| Core Highlight | The only model in its class equipped with rear axle differential lock |
| Chassis Configuration | |

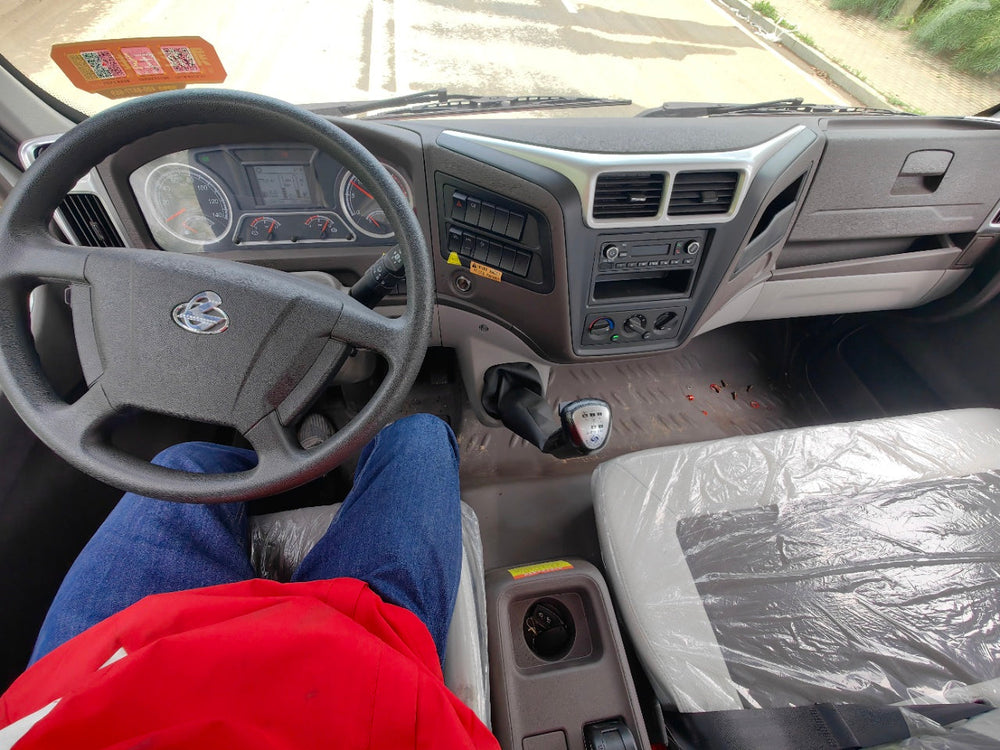

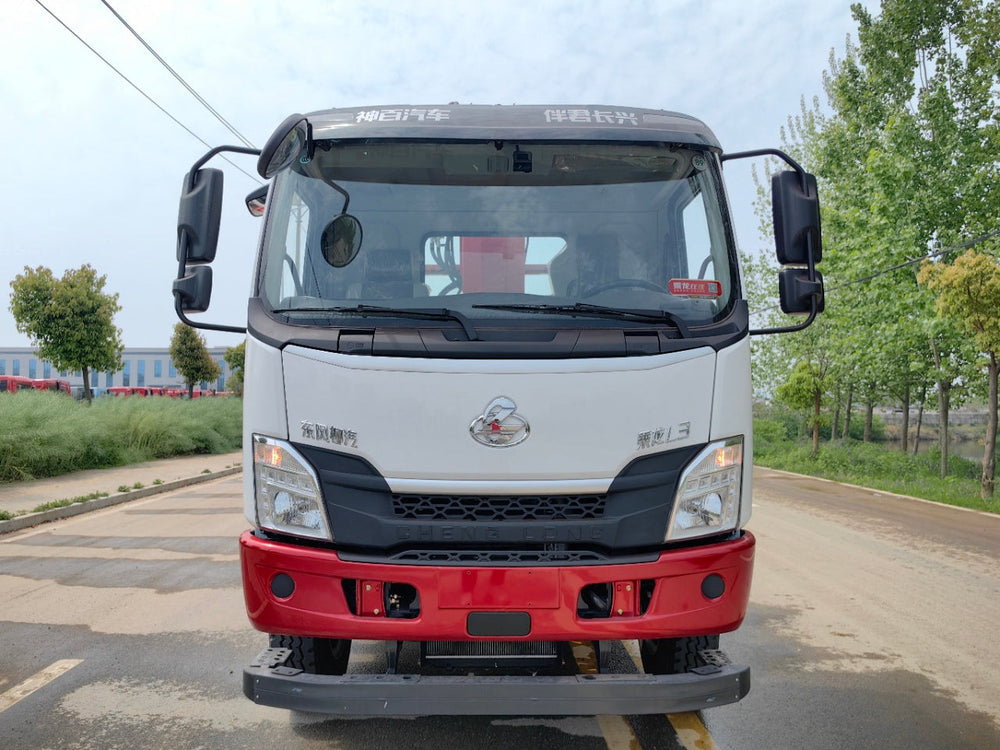

| Cab Model | Liuzhou Auto Chenglong L3 Row-and-a-half Cab |
| Engine | Yuchai YCS04220-61A Engine (with exhaust brake, cylindrical muffler) |
| Gearbox | Fast 8JS85E-C Gearbox (with flange power take-off) |
| Clutch | Φ395 Push-type Clutch |
| Front Axle | 5.5t Narrow Front Axle |
| Rear Axle | 11.5t Rear Axle (with differential lock) |
| Leaf Spring | 11/10+8 Leaf Spring |
| Frame | 270 Laminated Girder |
| Fuel Tank | 200L Fuel Tank |
| Tire Specification | 10.00R20 Tires |
| Upper Body Configuration | |
| Upper Body Type | 8-ton One-tow-two Upper Body |

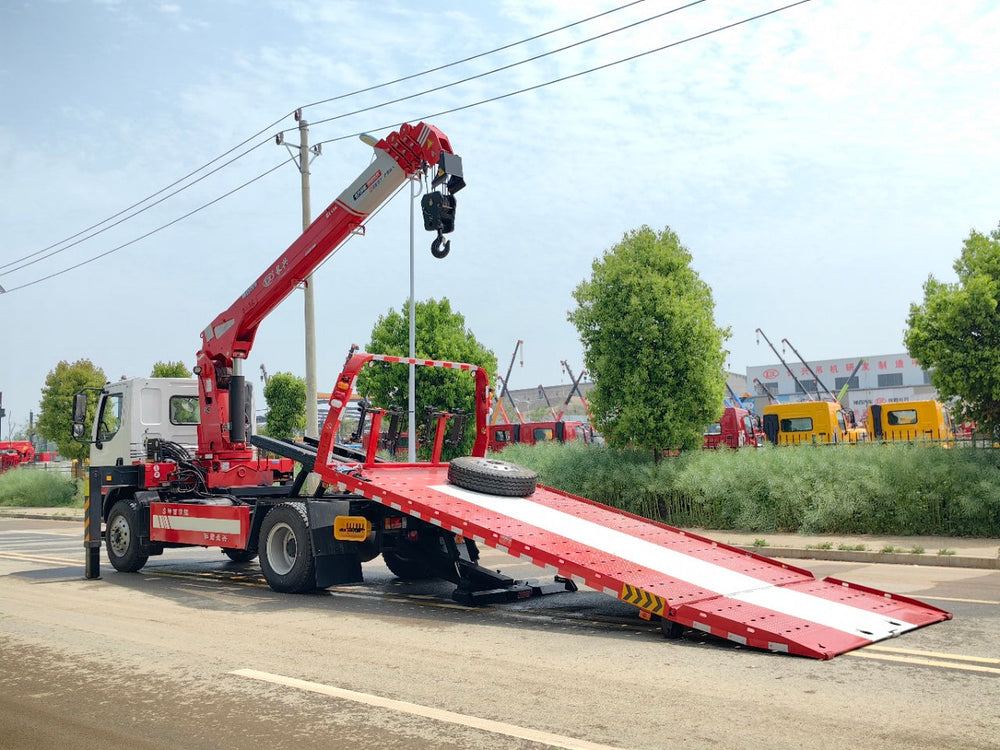

| Flatbed Dimensions | Overall Length 6m (including hydraulic turnover), Width 2.55m |
| Manufacturing Process | Standard sunken process (lowers flatbed center of gravity) |

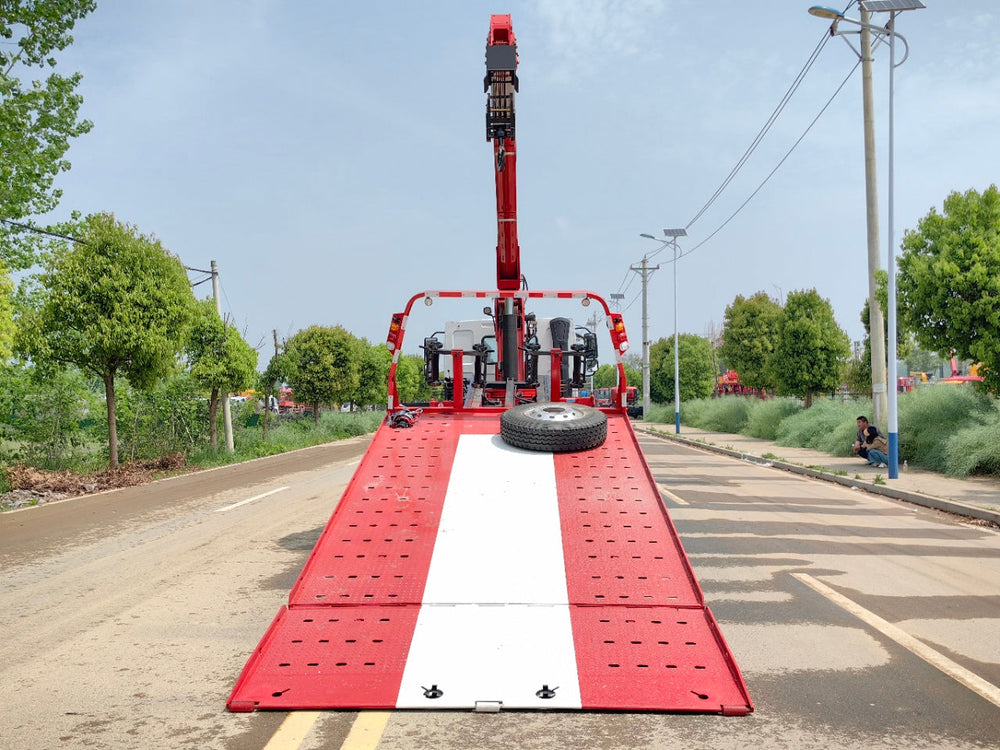

| Flatbed Floor | 6mm Thick High-strength Wear-resistant Checkered Plate |
| Frame Border | 16mm Solid Steel Plate Frame with cut holes |
| Slideway | 10mm Thick Manganese Steel Reinforced Slideway (front binding steel plate reinforced) |

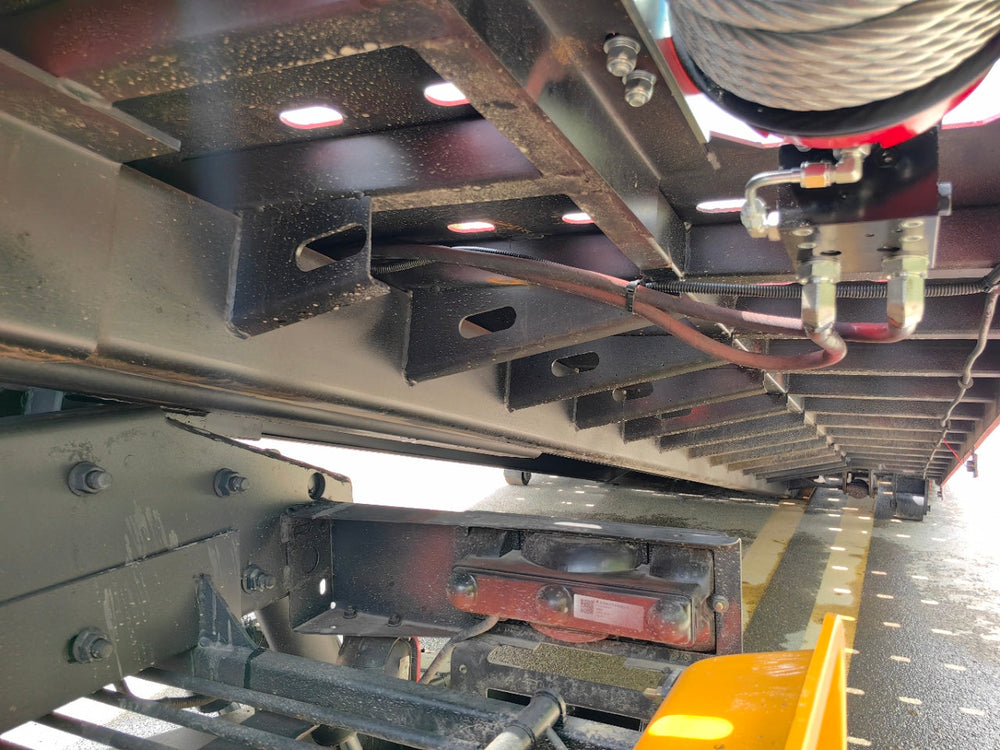

| Body Structure | Densified cross beams under plate, densified triangular diagonal bracing |
| Winch | 6-ton Winch |
| Rear Tow Arm | 6-ton 2-section Rear Tow Arm |
| Crane Configuration | |

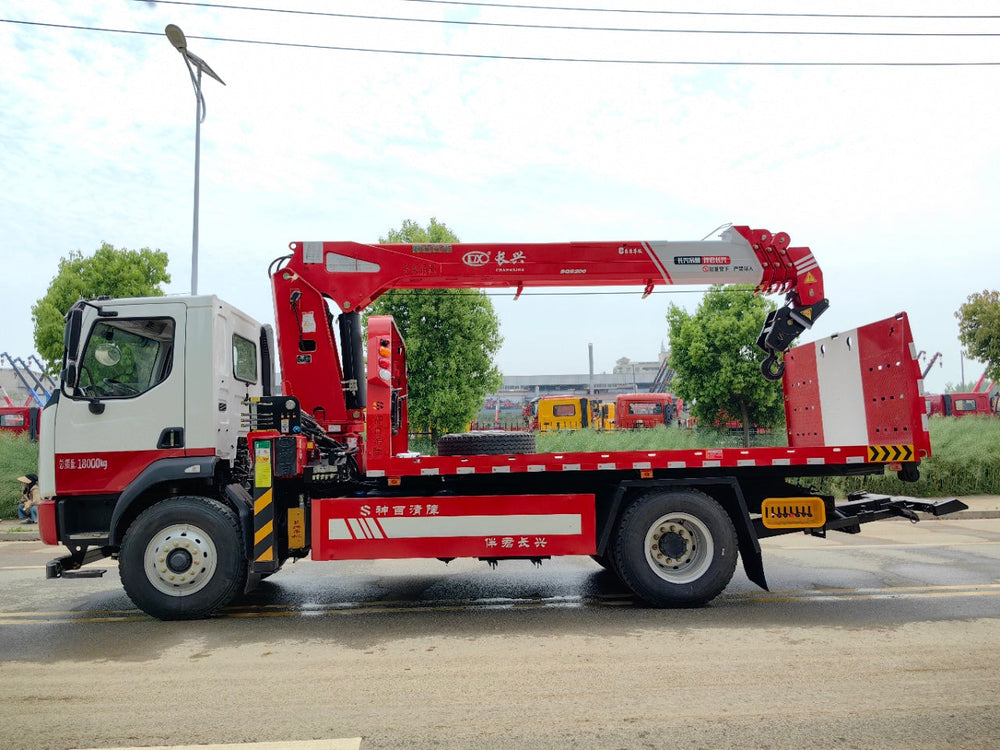

| Crane Model | Changxing Supreme Edition 8-ton 4-section Arm Crane |
| Boom Length | 13.5m |
| Maximum Lifting Height | 15.5m |
| Optional Upgrade | Optional 10-ton Crane |
| On-board Accessories | |
| Gantry Side Lights | 1 Set |
| Triangle Wheel Chocks | 1 Pair |
| Binding Belts | 4 Pieces |
| Square Wheel Holding Tubes | 1 Pair |
| L-shaped Forks | 1 Pair |
| Auxiliary Trolleys | 1 Pair |
| On-board Crowbar | 1 Piece |
