| Parameter | Specification |
| Engine | Weichai WP7H320E62, 320 Horsepower, 6.8L Displacement |
| Wheelbase | 5825 + 1350 mm |
| Axle Ratio | 5.143 |
| Gearbox + Power Take-off (PTO) | HW13709XSTC2 Gearbox + HW70 Flange-type Power Take-off (PTO) |
| Front & Rear Axles | Sinotruk HOWO Reinforced Axles, 7.5 Ton Front Axle / 13 Ton Rear Axle |
| Frame Structure | Triple-layer Through Frame (8+5+5/300) |
| Leaf Spring Configuration | 10 Pieces (Front) / 12 Pieces (Rear) |
| Tire Specification | 11.00R20 Tires, Mixed Tread Pattern, 18PR |
| Chassis Configuration | Sinotruk HOWO MATE5; MATE-K Crew Cab (Extended) Premium Version; Multi-function Steering Wheel; Electrically Adjustable & Heated Rearview Mirrors; Driver Airbag Seat + Passenger Lightweight Seat; WP7H320E62 Engine; HW13709XSTC2 9-speed Synchronizer Gearbox; Sinotruk HOWO Reinforced Front & Rear Axles (7.5T/13T); Axle Ratio 5.143; Manual Cab Lifting; Triple-layer Through Frame (8+5+5/300); Front & Rear Standard Multi-leaf Springs (10/12); Front & Rear Cab Spring Damping; Speed Limit 89km/h; U-shaped Exhaust System; ABS (4S/4M); High-mounted Non-metallic Bumper; 11.00R20 Tires (Mixed Pattern/18PR); 300L Aluminum Alloy Fuel Tank; Cable-operated PTO; Sinotruk Intelligent Connect B Version; Cab Middle Seat; Terminal Emission Monitoring Device |
| Core Advantage Configuration | Integrated development of engine, gearbox and axles for superior vehicle adaptability; Original Mercedes-Benz cab body; 4-point cab suspension with industry-leading collapse technology, effectively ensuring the safety of drivers and passengers in emergency situations; Driver-side premium aviation airbag seat with multi-directional adjustment and lumbar support, user-friendly safety belt design for superior driving comfort; Engineering vehicle leaf springs and four U-bolts for industry-best torsion resistance under complex road conditions; Equipped with V-type thrust rod for optimal body stability, ensuring more stable vehicle performance under heavy load; 13-ton rear axle with three differential locks, providing torque multiplication to easily handle various complex road conditions |

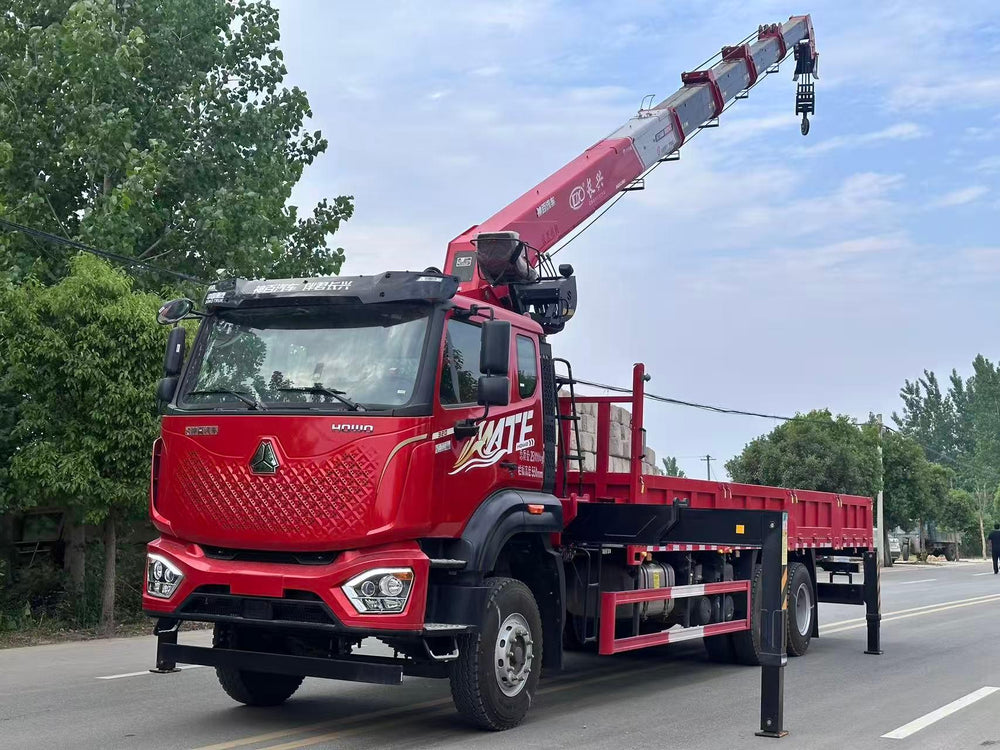

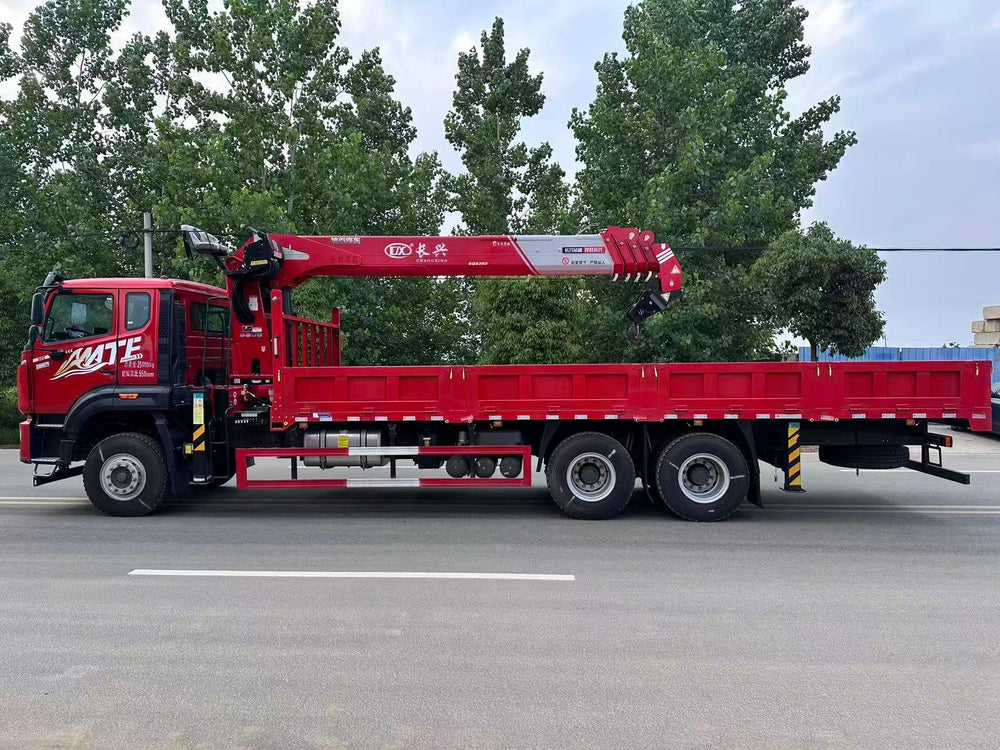

| Upper Body Configuration | Changxing 14-ton 5-section Boom Crane, Boom Length 19.9m, Upper Operation, Single Slewing, Two-stage Outriggers, with Radiator; Through-type Auxiliary Beam; 8.4m Engineering Cargo Box with 3mm Side Thickness & 5mm Bottom Thickness |
