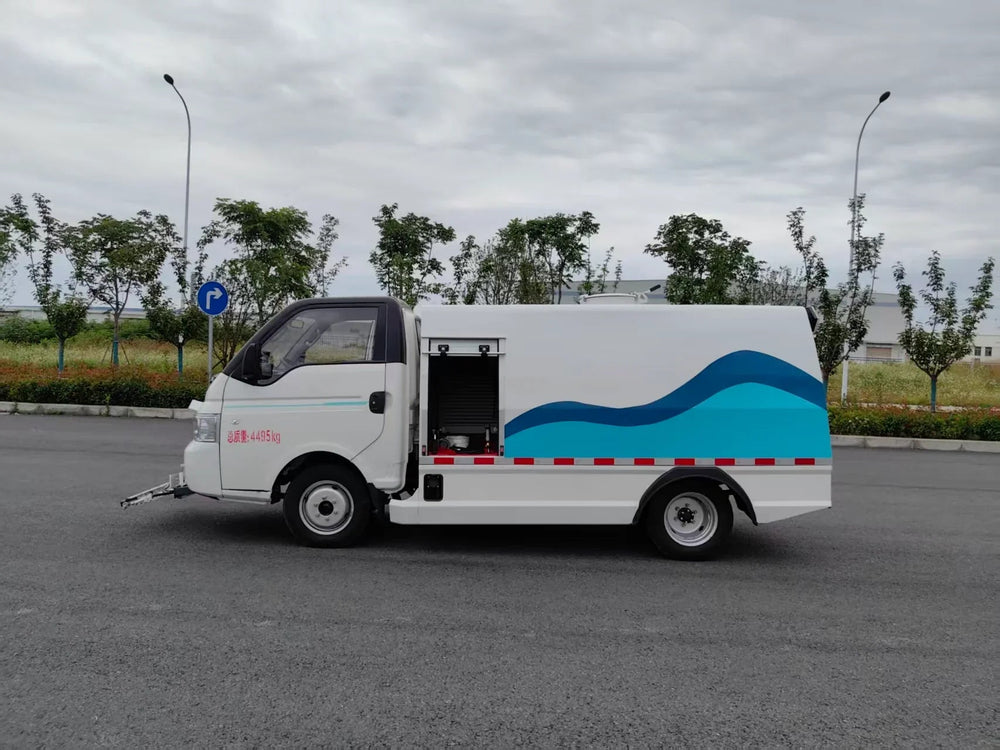

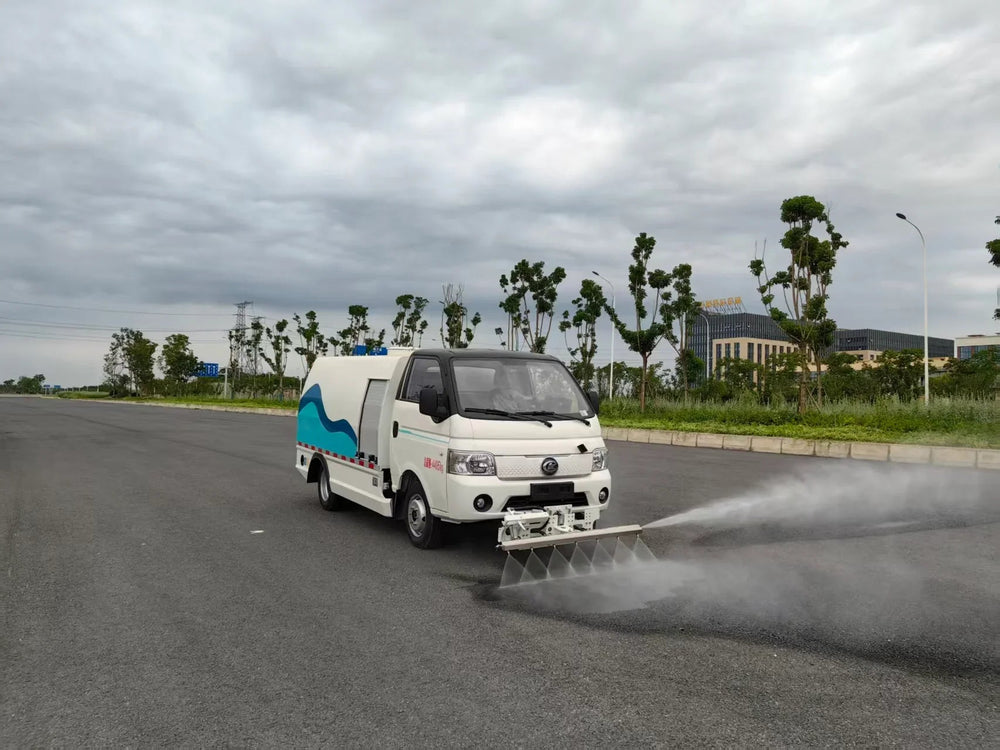

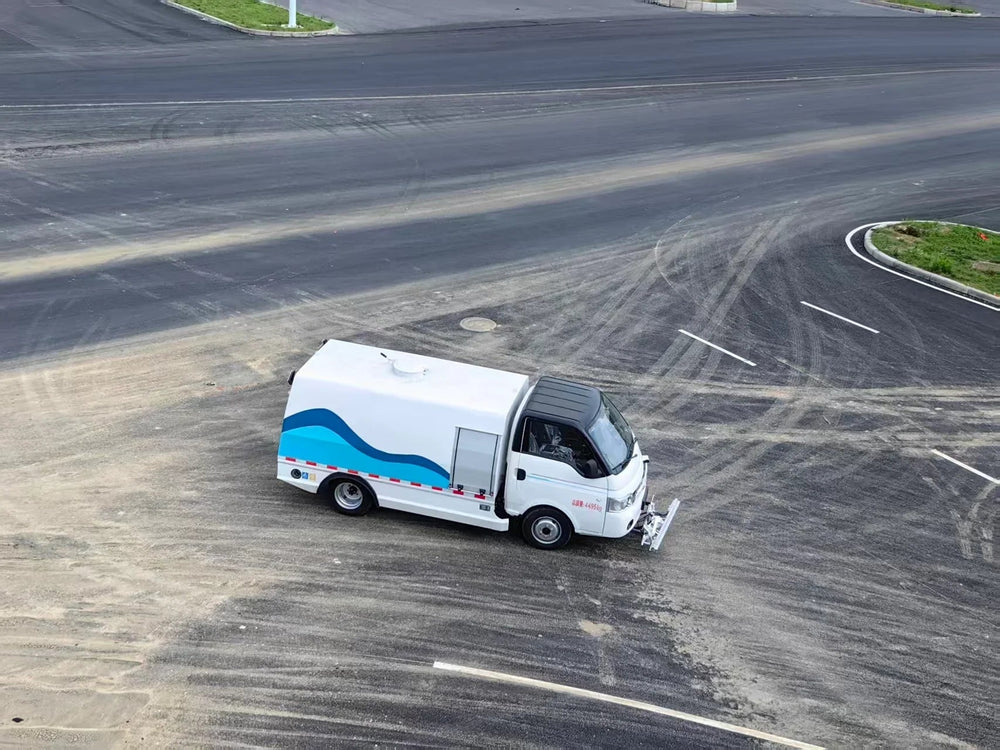

4.5T EV Road Maintenance Truck

1 / 3

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Zero-emission electric vehicle for road sweeping, washing and daily pavement maintenance of municipal roads.

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5042TYHBEV Battery Electric Road Maintenance Truck
Gross Vehicle Weight (GVW)	4495 kg
Curb Weight	2860 kg
Payload Capacity	1505 kg
Rated Passenger Capacity	2 persons
Cab Model	Kaima
Overall Dimensions (L×W×H)	5440×1880×2150mm (standard) / 2250mm (optional)
Wheelbase	2800 mm
Front Extension / Front Overhang / Rear Overhang	415 / 1210 / 1015 mm
Approach / Departure Angle	11° / 18°
Front / Rear Track Width	1405 / 1240 mm
Minimum Ground Clearance	185 mm
Minimum Turning Diameter	13 m
Tire Specification	185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Chengli Automobile Group Co., Ltd.
Chassis Model	CL1041JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	Gotion High-tech
Battery Capacity	57.6 kWh
Nominal Voltage / Capacity	384V / 150Ah
Battery System Energy Density	140.3 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ210XSZ03
Rated / Peak Power	55 / 110 kW
Rated / Peak Torque	150 / 318 Nm
Rated / Peak Speed	3500 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	25%
Fast Charging Time (20%-100% SOC)	1.0h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Water Tank Volume	2.5 m³
Upper Equipment Motor Rated / Peak Power	10 / 15 kW
High-Pressure Water Pump Brand	Pinful / AR
High-Pressure Water Pump Model	PD4020 / XW30.25
High-Pressure Water Pump Rated Pressure	20 MPa (standard PD4020 pump) / 25 MPa (optional XW30.25 pump)
High-Pressure Water Pump Rated Flow Rate	40 L/min (standard PD4020 pump) / 30 L/min (optional XW30.25 pump)
Water Circuit System Pressure	12 MPa (standard PD4020 pump) / 13 MPa (optional XW30.25 pump)
Front Spray Bar	Cleaning width ≥1.7m; 100mm liftable; ±20° left-right swing
Hose Reel	15m standard, 20m optional
Working Equipment	Standard: Front spray bar, spot spray, left & right corner spray, hose reel + hand-held spray gun, hand-push spray bar Optional: Rear spray, lifting platform
