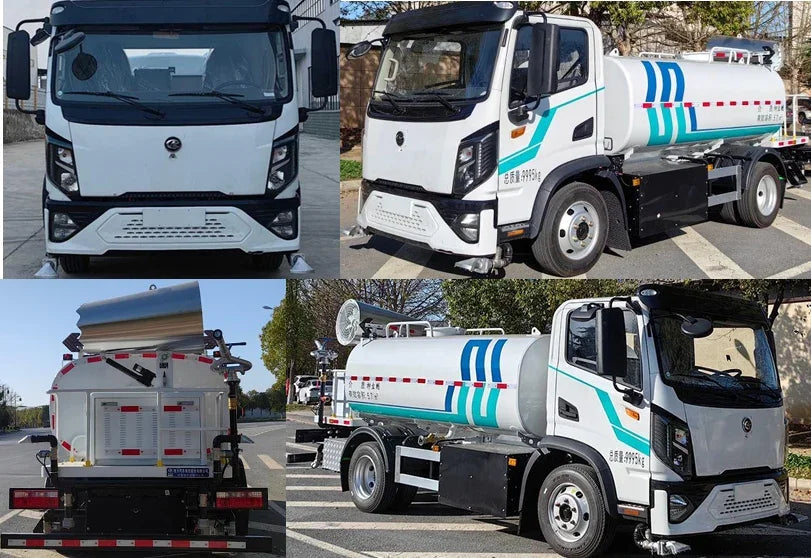

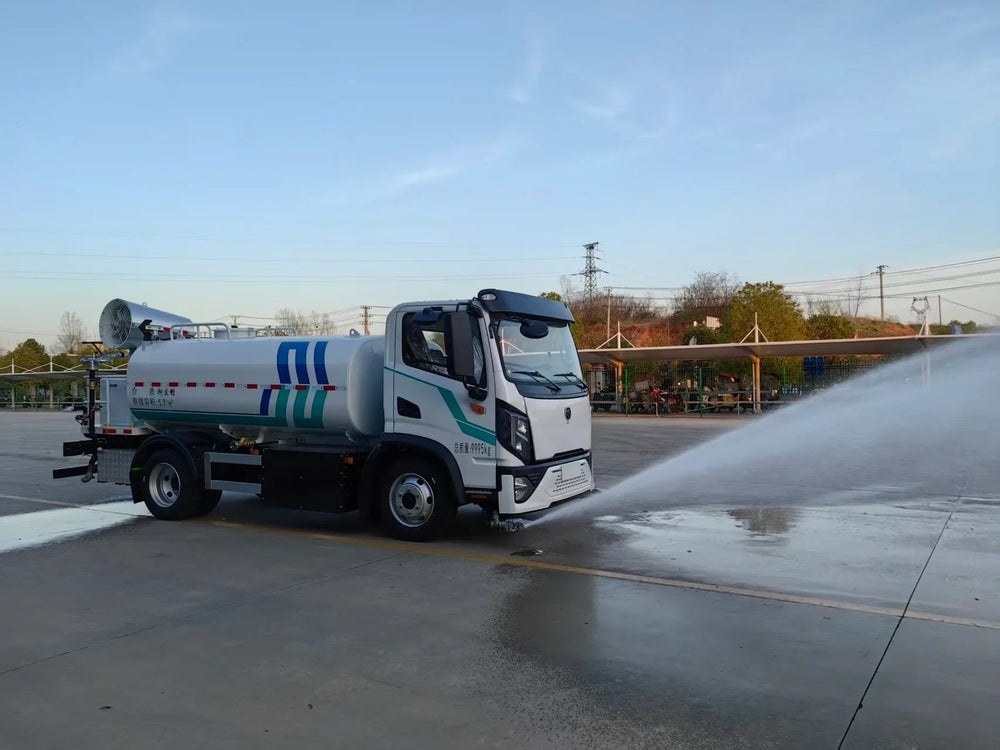

10T EV Multi-purpose Dust Control Truck

1 / 2

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Parameter	Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model	CL5100TDYBEV Battery Electric Multi-Function Dust Suppression Truck
Gross Vehicle Weight (GVW)	9995 kg
Curb Weight	5240 kg
Payload Capacity	4560 kg
Rated Passenger Capacity	3 persons
Cab Model	Zhenghe
Overall Dimensions (L×W×H)	6730×2250×2720 / 2780mm (standard)
Wheelbase	3360 mm
Front / Rear Overhang	1275 / 2095 mm
Front / Rear Track Width	1780 / 1642 mm
Approach / Departure Angle	13° / 10°
Minimum Ground Clearance	275 mm
Minimum Turning Diameter	13.5 m
Tire Specification	245/70R19.5 16PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer	Chengli Automobile Group Co., Ltd.
Chassis Model	CL1100JBEV
Drive Configuration	4×2
Battery Type	Lithium Iron Phosphate (LFP)
Battery Manufacturer	CALB
Battery Capacity	128.86 kWh
Nominal Voltage / Capacity	560.28V / 230Ah
Battery System Energy Density	156.6 / 158.37 Wh/kg
Drive Motor Manufacturer	Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model	TZ230XSZ50
Rated / Peak Power	120 / 200 kW
Rated / Peak Torque	200 / 500 Nm
Rated / Peak Speed	5730 / 12000 rpm
Maximum Speed	90 km/h
Driving Range	240 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded)	30%
Fast Charging Time (30%-80% SOC)	0.5h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Water Tank Dimensions (L×Major Axis×Minor Axis)	3400×1950×1100 mm
Certified Effective Water Tank Volume	5.7 m³
Total Water Tank Volume	5.98 m³
Upper Equipment Motor Rated / Peak Power	15 / 20 kW
Low-Pressure Water Pump Brand	Weilong / Weijia
Water Pump Model	65QZ-40-45N-K-T2-Y1536XT / 65QSB-40/45ZLD
Pump Lift Head / Flow Rate	45m / 40m³/h
Front Duckbill Flushing Width	≥10m
Opposite Flushing Width	≥22m
Rear Sprinkling Width	≥12m
Sprinkling Speed	5~20 km/h
Water Cannon Range	≥30m
Fog Sprayer Model	WF40-EV
Static Wind Range	30-40m
Number of Nozzles	16 pcs
Water Consumption	1.5-2 m³/h
Rotation Angle	±90°
Elevation/Dip Angle	-10°~45°
Control Mode	Central Control Screen / Remote Control
