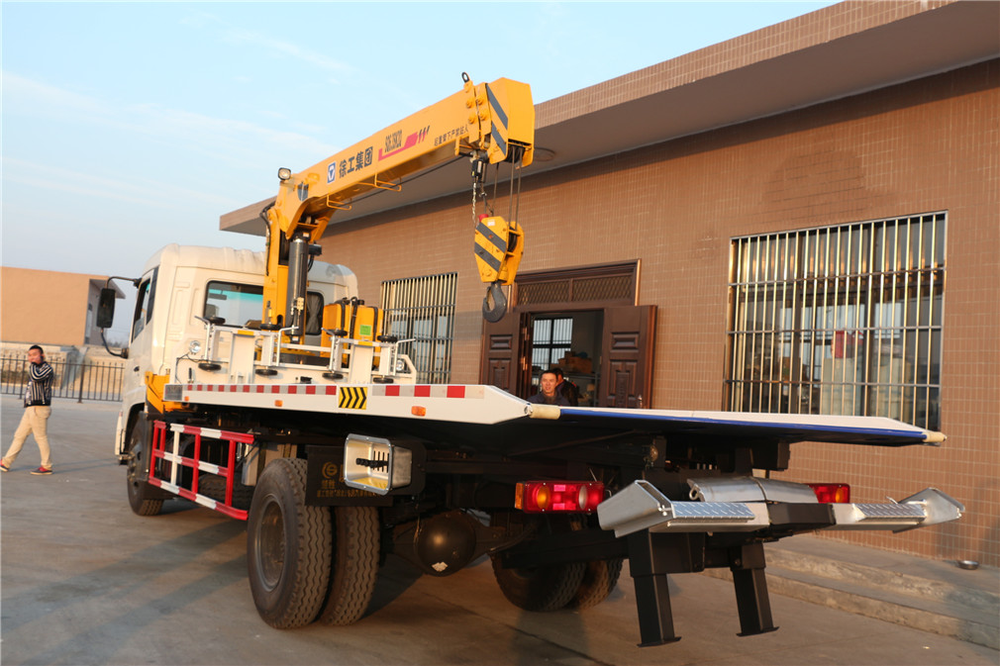

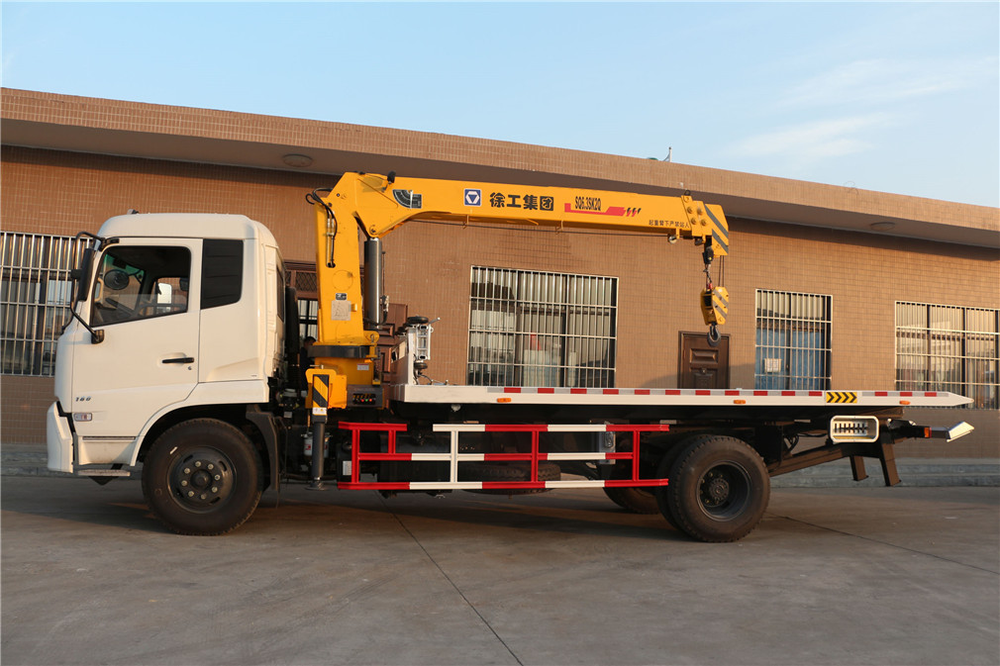

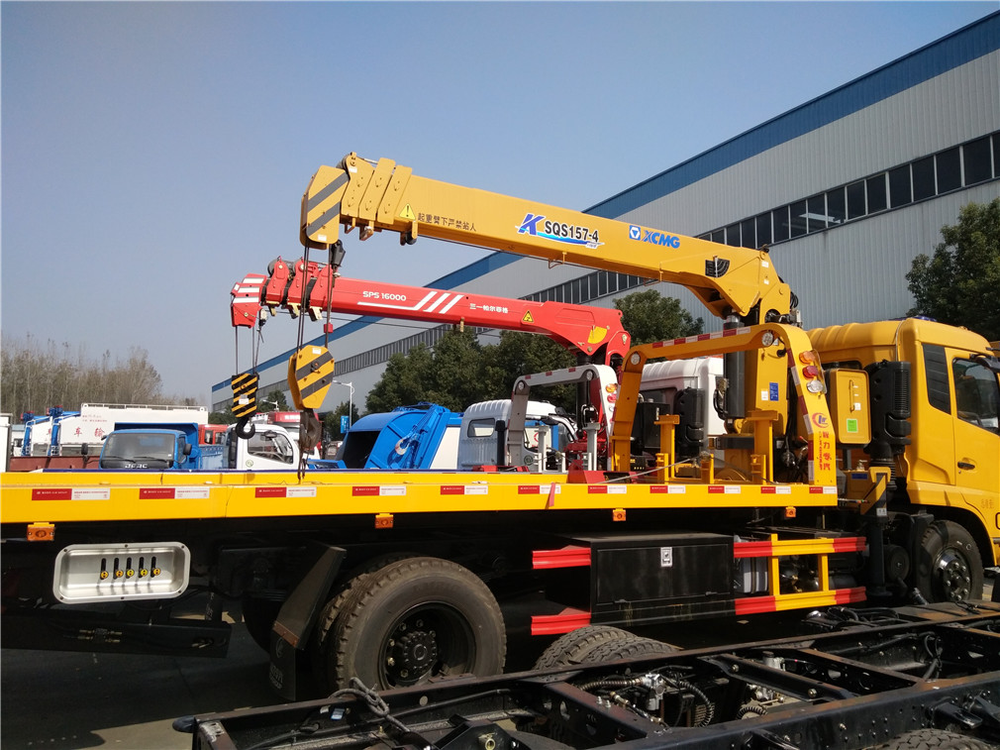

One-tow-two Wrecker Truck with Crane, Dongfeng Kinland

1 / 3

Request a Quote Now

Get Quotation via Email Request Quotation via WhatsApp

Complete Vehicle Configuration Equipped with Cummins 180-horsepower engine, 6-speed transmission, 900R20 steel wire tires, air cutoff brake, factory-installed air conditioner, and 5-meter wheelbase; engine model ISB-50. Fitted with a 5–6.3 ton crane, a flatbed with 5-ton towing arm matched with a 6-ton winch, and 25-meter steel wire rope. It adopts bilateral linked operation. Pattern plates and pressed plates are optional. One set of auxiliary trolley, yellow electronic warning light and four binding straps are provided.

Category	Item	Specification
Product Info	Brand	Chengliwei
	Manufacturer	Chengli Special Automobile Co., Ltd.
	Vehicle Model	CLW5122TQZD5
	Announcement Batch	300
Dimensions	Overall Dimensions (mm)	9140, 9440 × 2480 × 3700
Weight Parameters	Gross Vehicle Weight (kg)	12,495
	Curb Weight (kg)	10,000
	Axle Load (kg)	4,400 / 8,095
	Towing Capacity (kg)	2,300
Performance	Max Speed (km/h)	98
	Fuel Type	Diesel
	Emission Standard	China V (National 5)
	Fuel Tax Exemption	No
	Environmental Certification	Yes
Cab & Seating	Front Row Passengers	3 persons
	Cab Options	Optional cab styles available with chassis
Crane Options	SQ6.3SA2 Crane	Lifting capacity: 6,300 kg; self-weight: 1,900 kg
	SQ5SA2 Crane (optional)	Lifting capacity: 5,000 kg; self-weight: 1,650 kg
Wheelbase	Wheelbase Options (mm)	4,700 (matches 9,140mm length) / 5,000 (matches 9,440mm length)
Protection	Side Protection Material	Q235A carbon steel, welded to chassis frame
	Rear Protection	Exempted (rear special equipment interferes with rear protection)
ABS System	ABS Model	3631010-C2000
	ABS Manufacturer	Dongke Knorr-Bremse Commercial Vehicle Brake Systems (Shiyan) Co., Ltd.
Other	Optional Appearance	Multiple exterior image options available

Category	Item	Specification
Basic Chassis Info	Chassis Model	DFL1120B21
	Chassis Brand	Dongfeng
	Number of Axles	2
Wheel Track & Wheelbase	Front Wheel Track (mm)	1880, 1900
	Wheelbase (mm)	3650, 3800, 4200, 4500, 4700, 5000
	Rear Wheel Track (mm)	1860, 1800, 1820
Tire Configuration	Number of Tires	6 pcs
	Tire Size	9.00-20, 9.00R20, 275/70R22.5
Angle & Overhang Parameters	Approach / Departure Angle (°)	20/30, 20/18, 20/13
	Front Overhang / Rear Overhang (mm)	1440/1350, 1440/1890, 1440/2190, 1440/2390

Engine Model	Engine Manufacturer	Displacement (mL)	Power (kW)
ISD180 50	Dongfeng Cummins Engine Co., Ltd.	4500	132
ISD160 50	Dongfeng Cummins Engine Co., Ltd.	4500	118
ISB180 50	Dongfeng Cummins Engine Co., Ltd.	5900	132
EQH180-53	Dongfeng Commercial Vehicle Co., Ltd.	4752	132
