Description |

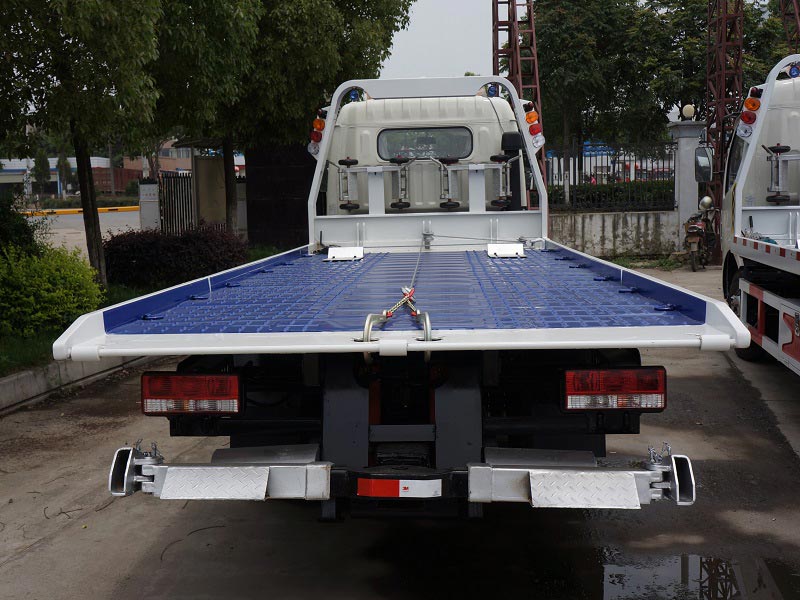

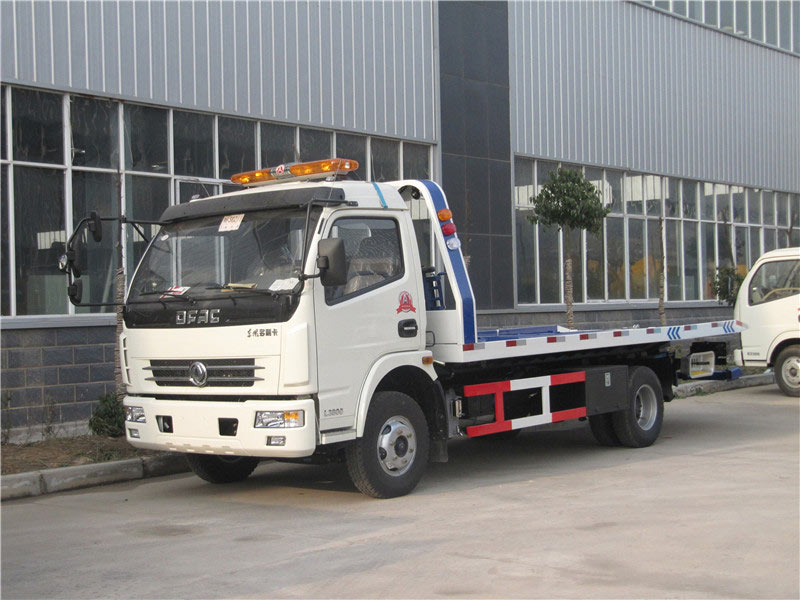

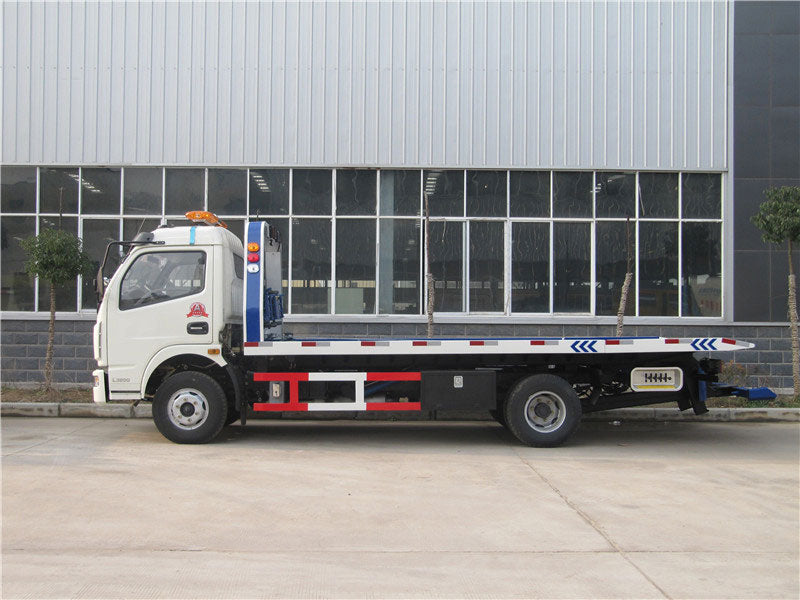

Dongfeng One Carry Two Recovery Truck |
||
|
Drive Model |
4x2 |
||
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
7420X2300X2540 |
|
|
Wheel base (mm) |
3800 |
||
|
Overhang (front/rear) (mm) |
1180/2440 |
||
|
Wheel track (front/rear) (mm) |
1835/1640 |
||
|
Approach/Departure angle(°) |
20/10 |
||
|
Weight in KGS |
Curb Weight |
5495 |
|
|
GVW. |
7490 |
||
|
Max. driving speed(km/h) |
90 |
||
|
Engine |
Model |
CY4102 |
|
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
||
|
Horse Power(HP) |
120HP |
||
|
Emission standard |
Euro II |
||
|
Gearbox |
5 forwards & 1 reverse |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Fuel tank (L) |
180 |
||
|
Tire |
7.50R16 , 6pcs + 1 spare tire |
||
|
Brakes |
Exhaust brake |
||
|
UPPER |
|||
|
Platform Organ |
LXW(mm) |
5400x2100 |
|
|
Platform power stroke(mm) |
2680 |
||
|
Min angle(°) |
7.6 |
||
|
Max lifting capacity(kg) |
3000 |
||
|
Winch rating pulling capacity(kg) |
4000 |
||
|
Length of steel(m) |
21 |
||
|
Hoisting Organ |
Max under-hoisting capacity(mm) |
1300 |
|
|
Rating under-hoisting capacity(mm) |
1005 |
||
|
Fully extended max under-hoisting capacity(mm) |
700 |
||
|
Rating under-pulling capacity(kg) |
5000 |
||
|
With auxiliary wheels, hooks, bundling belt, automatic sliding plate; |
|||
