Request a Quote Now
| Item | Specification |
|---|---|
| Lifting System | Dual luffing lift cylinders |
| Chassis Frame | Box-type structure |
| Boom Configuration | 7-section boom, 6-section synchronous telescoping |
| Max Working Height | 32–35 m |
| Max Working Outreach | 16.5 m |
| Outriggers | Double front & rear V-shaped square outriggers |
| Rotation Range | 360° rotatable turntable & work basket |
| Accessory | External hose reel |
| Hydraulic System | Top-tier domestic brand hydraulic parts |
| Turntable Control | Hydraulic lever with operator seat |

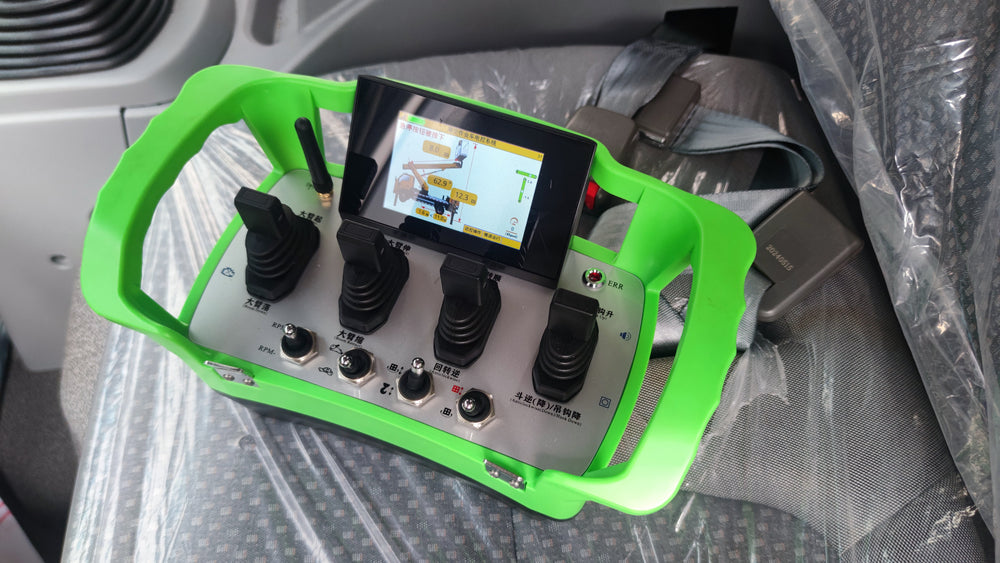

| Operation Mode | Electric remote controller |
| Emergency Device | Electric emergency pump |
| Standard Aluminum Basket | 1800×700×1000 mm, max load 200 KG |
| Optional Equipment | Upper operation cabin, insulated basket, load monitor, anemometer; upgraded basket load: 400 KG |
| Chassis Option | Optional chassis with approx.3300mm wheelbase |
Optional FRP Work Basket：
Optional Load Cell & Anemometer：
Optional Upper Operation Cabin：
Optional Folding Man Basket：
