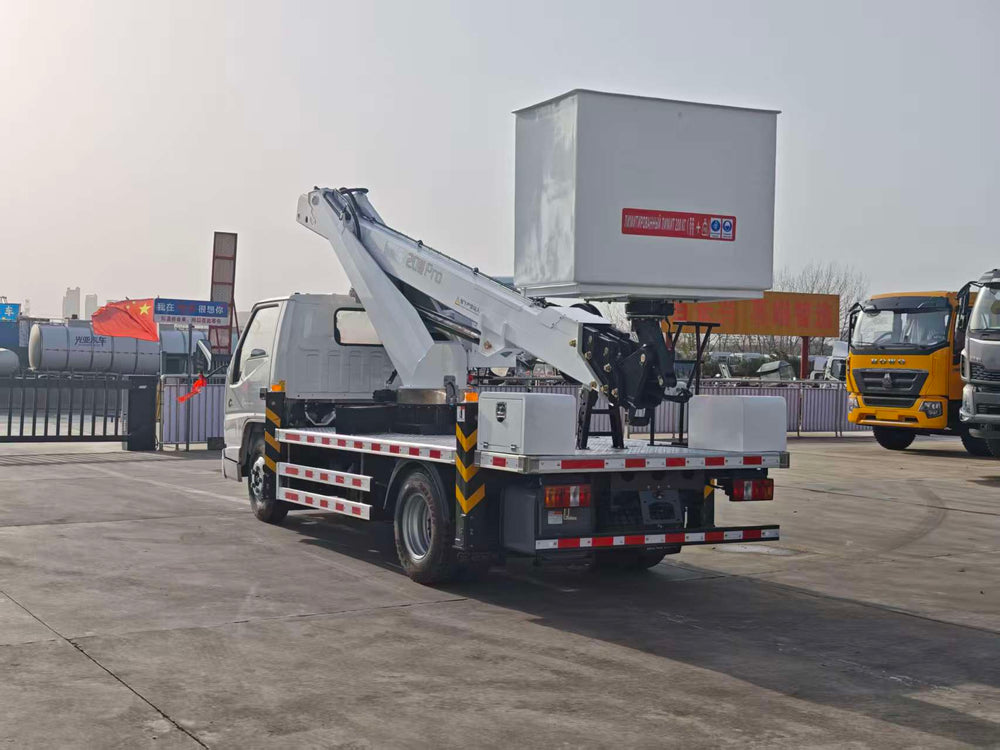

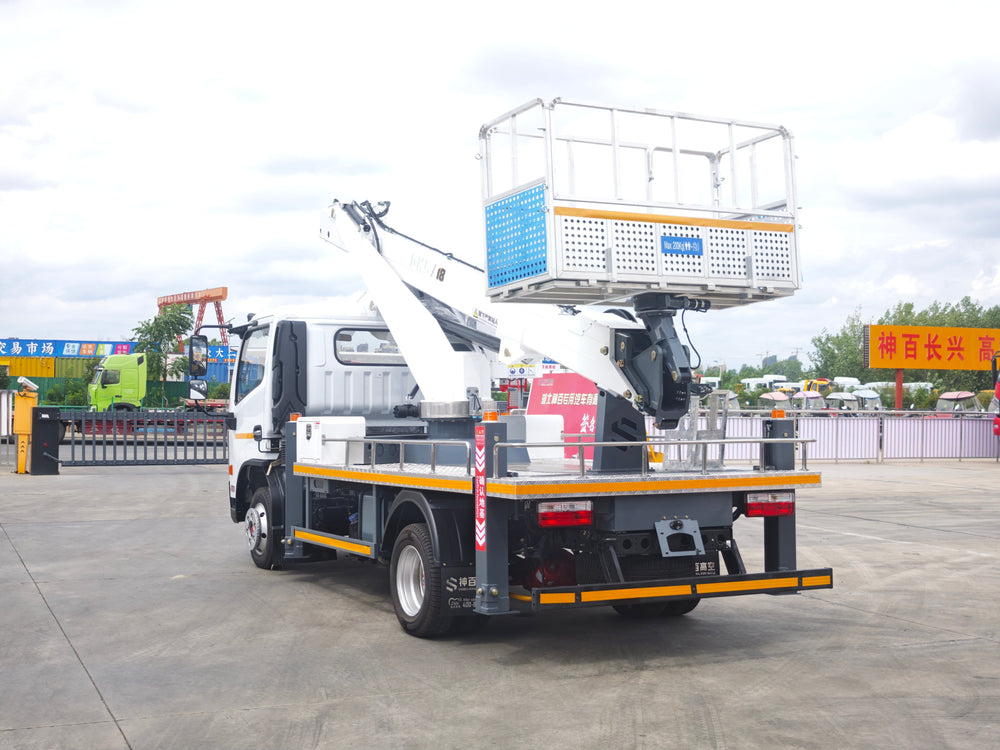

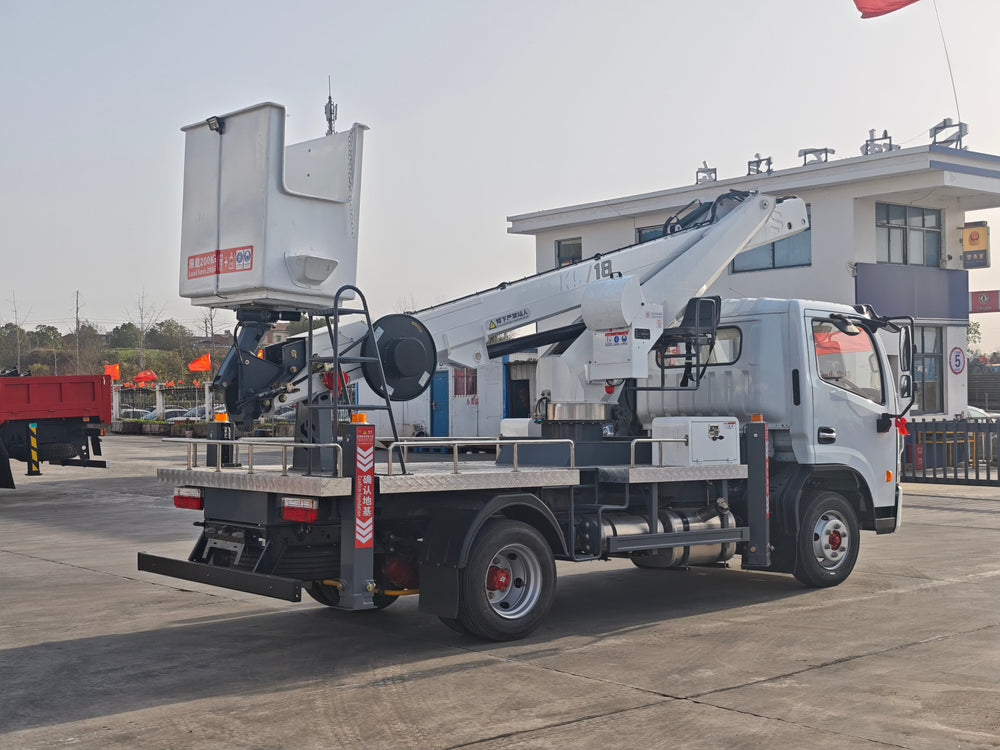

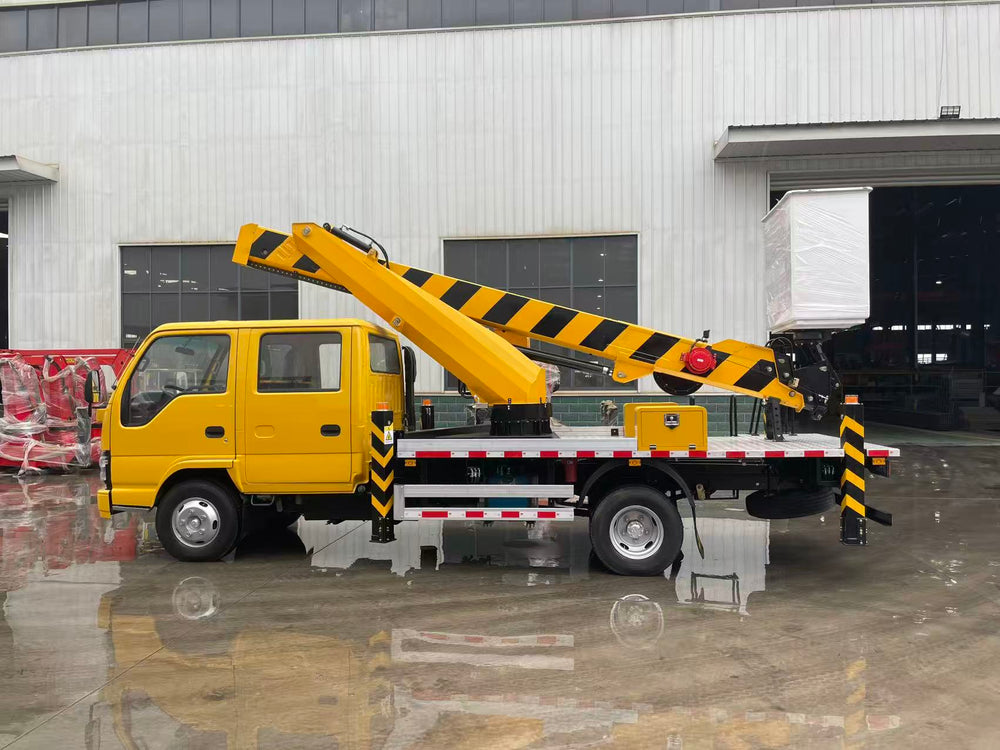

Custom-made folding arm aerial vehicle with working height from 20m to 24m for construction & municipal maintenance.
| Item | Parameter |
|---|---|
| Max Working Height | 20~24 m |
| Max Working Reach | 11 m |
| Standard Basket Load | 200 kg |
| Standard Basket Dimension | 1600×700×1100 mm, all-aluminum alloy |
| Rotation Range | Turntable & Work Basket: 360° full rotation |
2. Mechanical Structure
| Item | Parameter |
|---|---|
| Boom | Hexagonal 4-section boom, 3-section synchronous extension |
| Lifting Cylinder | Single luffing & lifting hydraulic cylinder |
| Outrigger | Front V-type + Rear H-type square outriggers |
| Auxiliary Fitting | External hose reel |
3. Hydraulic & Control System
| Item | Parameter |
|---|---|
| Hydraulic System | Top domestic brand hydraulic components |
| Upper Control | Turntable hydraulic lever operation with seat |
| Lower Control | Electric control + wireless remote controller |
| Emergency Device | Manual hydraulic emergency pump |
4. Optional Accessories
| Item | Optional Content |
|---|---|
| Optional Parts | Upper operation cabin, insulated basket, load cell, anemometer |
| Optional Basket Load | Upgrade to 400 kg |
Optional FRP Work Basket:
Optional Load Cell & Anemometer:
Optional Top Operator Cab：
Optional Foldable Work Basket：
