| Configuration Item | Specification |
| Chassis Configuration | |

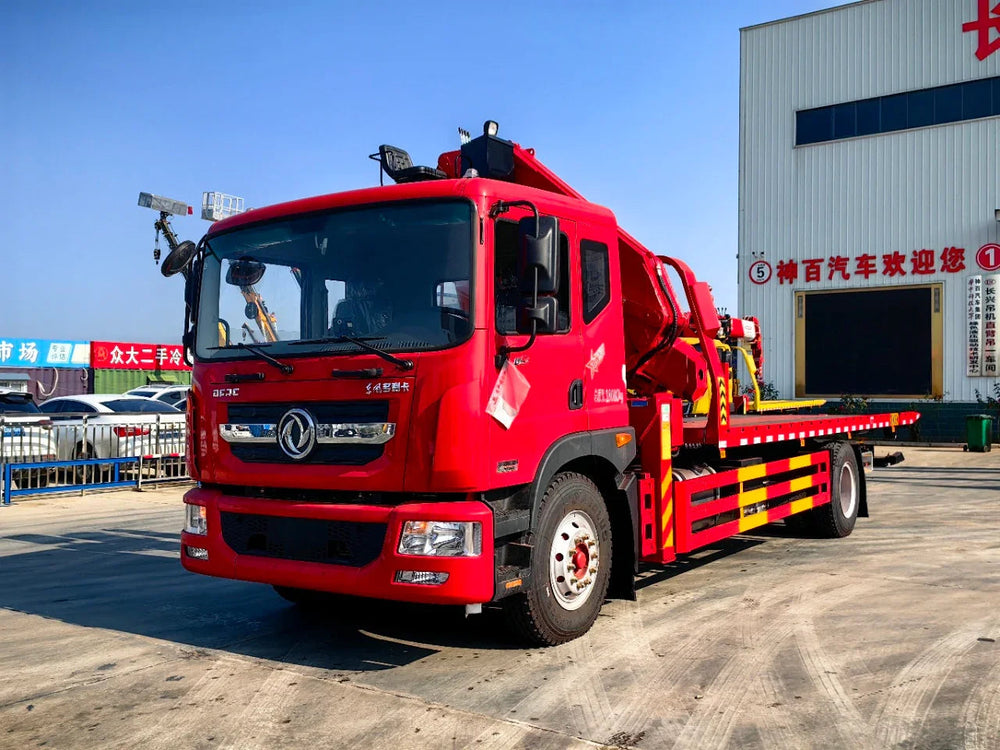

| Cab | Dongfeng D9 row-and-a-half cab with sleeper |
| Engine | Cummins 230 horsepower engine or Yuchai 200 horsepower engine |
| Gearbox | Fast 8-speed gearbox with high and low gears |
| Wheelbase | 5300/5600 wheelbase optional |
| Rear Axle | Dongfeng Dana 10-ton rear axle |
| Frame | Original factory three-layer girder (special chassis for wreckers) |
| Tires | 1000 steel radial tires with spare tire |
| Compliance | Meets Beijing emission standards, eligible for Beijing license plate registration |
| Upper Mounting Configuration | |
| Flatbed Specification | Total flatbed length 6.8-7.2 meters, rear hydraulic flip 1.2 meters |
| Flatbed Material & Structure | Made of 6mm high-strength wear-resistant checkered plate, double auxiliary beam design, manufactured with sunken plate process |
| Chute | Double-layer thickened manganese steel chute |
| Side Frame | 16 thick solid steel plate side frames with cut holes |
| Hydraulic Valve | Italian imported Haide valve |
| Winch | 8-ton winch |
| Rear Support Arm | 8-ton rear support arm (suspended on the main girder) |
| On-board Accessories | 2 rear working lights, 1 pair of side lights, 1 pair of auxiliary trolleys, 6 high-quality binding straps, 1 pair of triangular tire blocks, 1 pair of fork brackets (with 1 pair each of high, medium and low forks) |

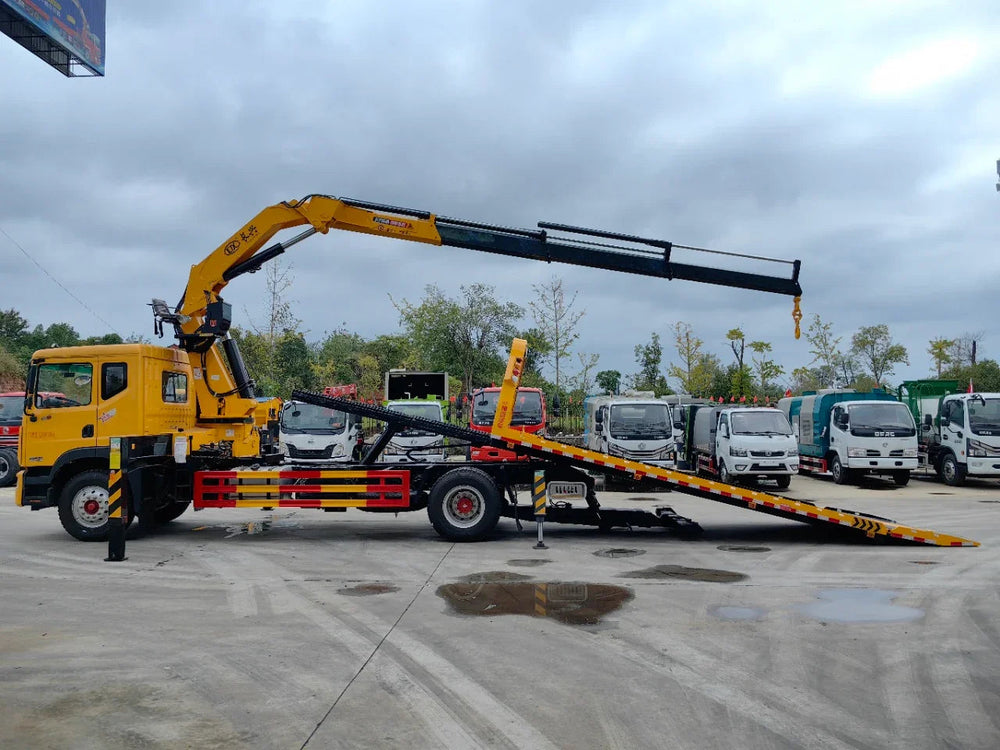

| Optional Crane | Compatible with Changxing 8-ton 4-section boom, 5-section boom straight arm crane, or 8-ton 4-section boom folding arm crane |
