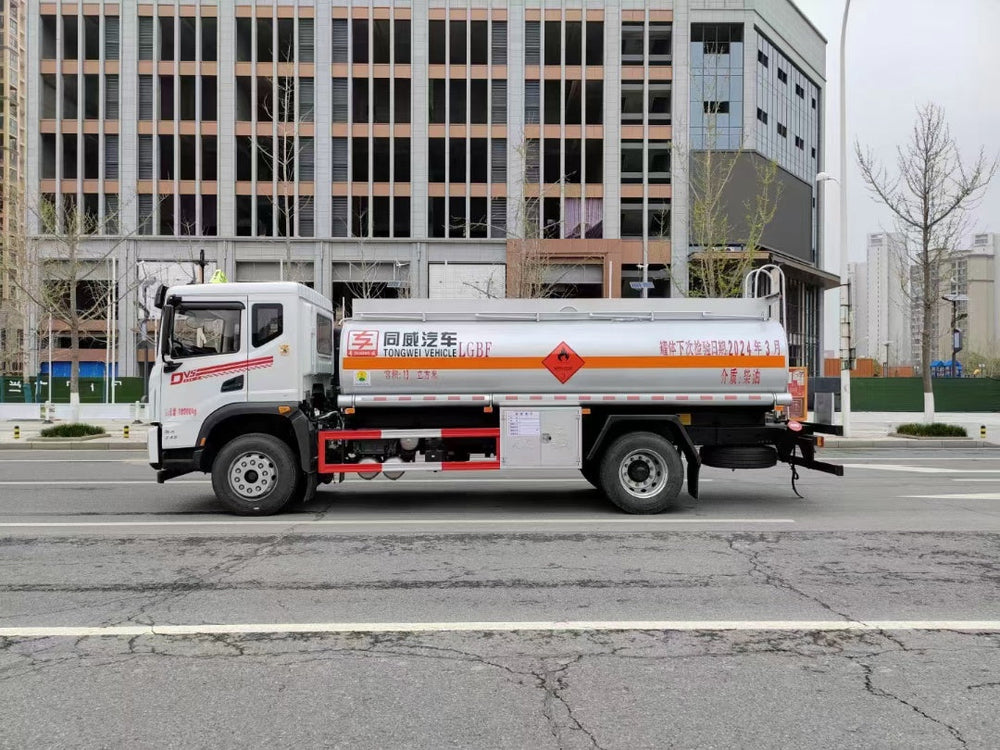

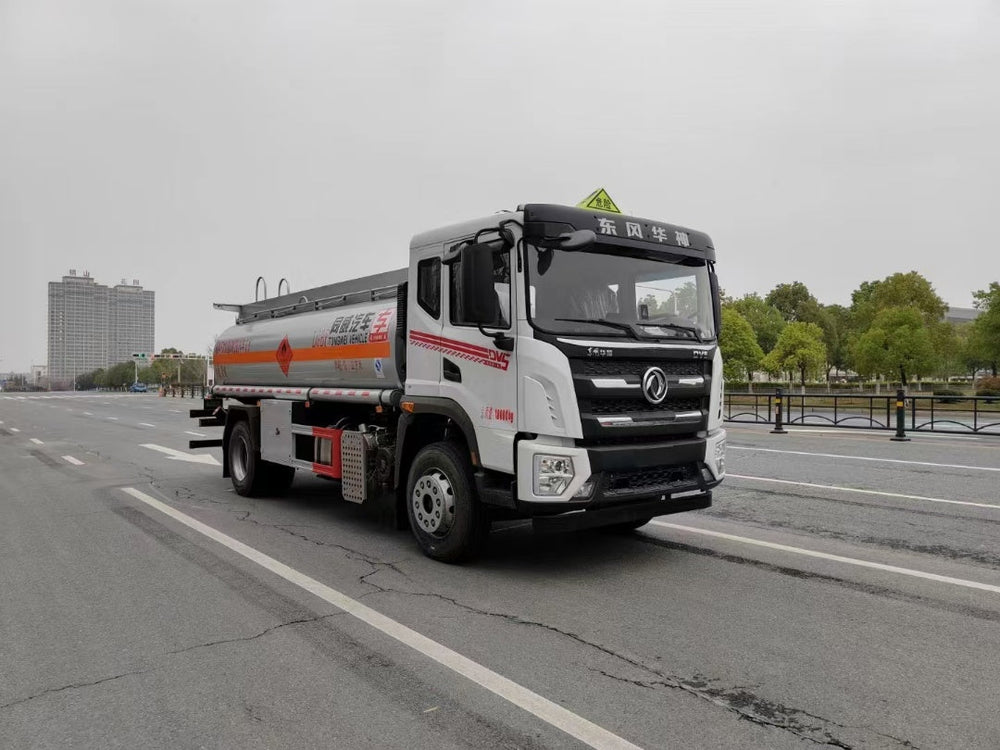

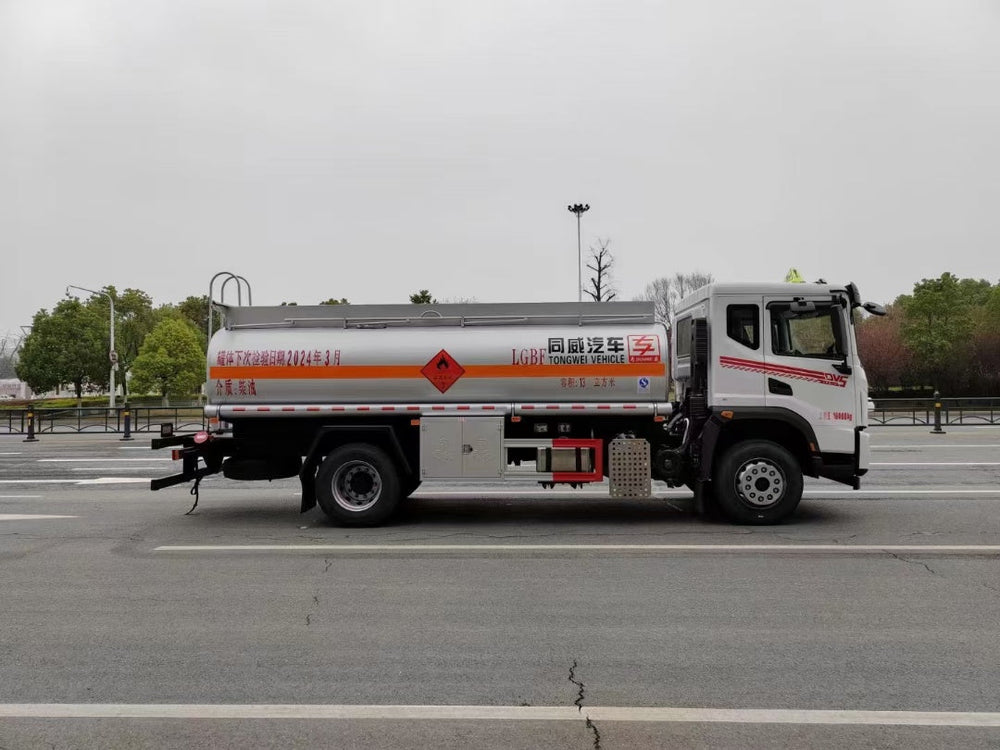

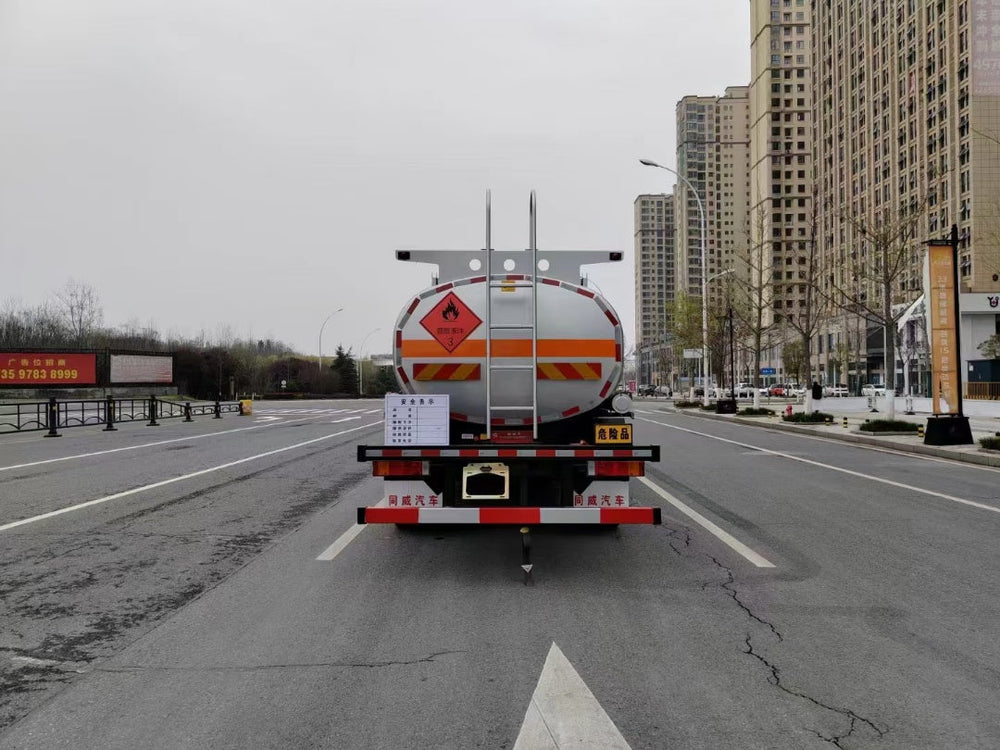

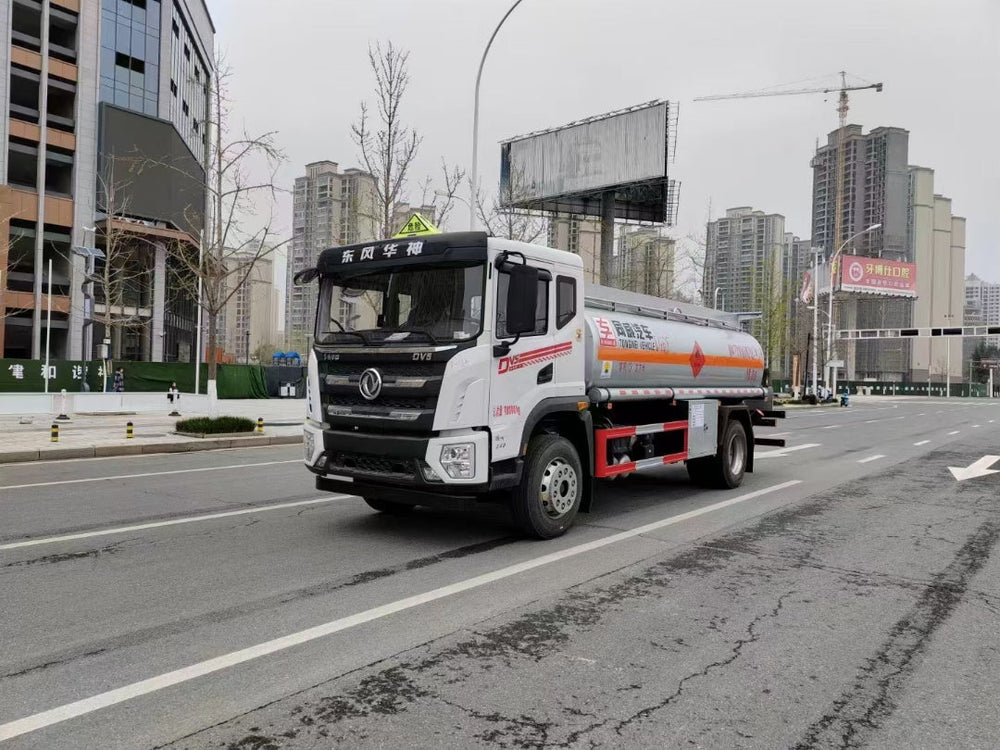

DongFeng 15m³ 245HP Oil Tank Truck

1 / 6

Request a Quote Now

Parameter	Value
Chassis Model	EQ1186GL6DJ7

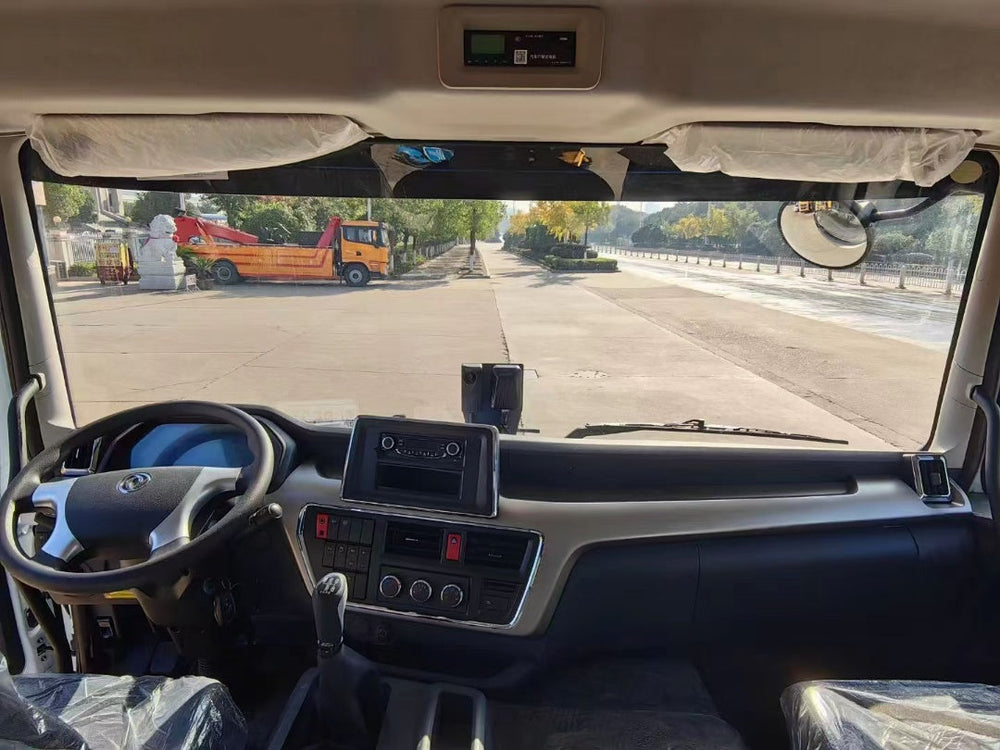

Cab Type	DV5 Half-Row Cab
Engine	Yuchai 6-Cylinder 245 HP
Transmission	Fast 8-Speed Gearbox
Wheelbase	4700 mm
Front Axle	Dongfeng Dana 4.5-Ton Disc Brake Front Axle
Rear Axle	9-Ton Rear Axle
Suspension System	Hendrickson (USA) 13-Ton Air Suspension
Tire Specification	275 Vacuum Tires
Fuel Tank	Aluminum Alloy Fuel Tank
Driver Seat	Airbag Suspension Seat
Remote Key	Equipped
Cab Interior	Air Conditioner, Electric Windows
Power Take-Off	Original Factory PTO
Speed Limiter	ECU Electronic Speed Limiter
Engine Brake	Engine Cylinder Brake
Safety Warnings	Lane Departure Warning, Forward Collision Warning

Parameter	Value
Tank Volume Options	13 m³ / 15.5 m³
Tank Shape	Square-Round Tank with Bulging (Dished) Heads
Tank Wall Thickness	Per design specification
Compartment Layout	Single Compartment
Pump System	80-60 Pump with Overflow Valve
Pump Inlet/Outlet	Installed on passenger side
European Standard Manholes	2 units
Bottom Valve	1 unit with alarm system
Anti-Overflow System	Anti-overflow probe and socket
Vapor Recovery System	1 unit
Bottom Loading System	1 unit (passenger side)
Fuel Dispenser	Reserved position for large-flow dispenser (driver side, under main beam)
Fuel Hose Reel	Reserved position for 15m large-flow reel (driver side, under main beam)
Drip Valve	Oil drip valve at front end of barrel pipe
Lifting Guardrail	Equipped
Fire Cap	1 unit
Static Grounding	Static belt
Oil Delivery Pipes	2 equal-length pipes with male & female couplings
Toolbox	1 unit
Fire Extinguishers	2 units
Pipe Plugs	2 units
Safety Sign	Safety notice board
Climbing Ladder	Rear climbing ladder
Tank Top Safety	Anti-slip net on tank top
Other Accessories	Remaining standard configuration
Compliance Guarantee	Vehicle exterior dimensions, tank dimensions and shape consistent with official announcement
Manufacturing	New technology production process
